Electric Scissor Lift

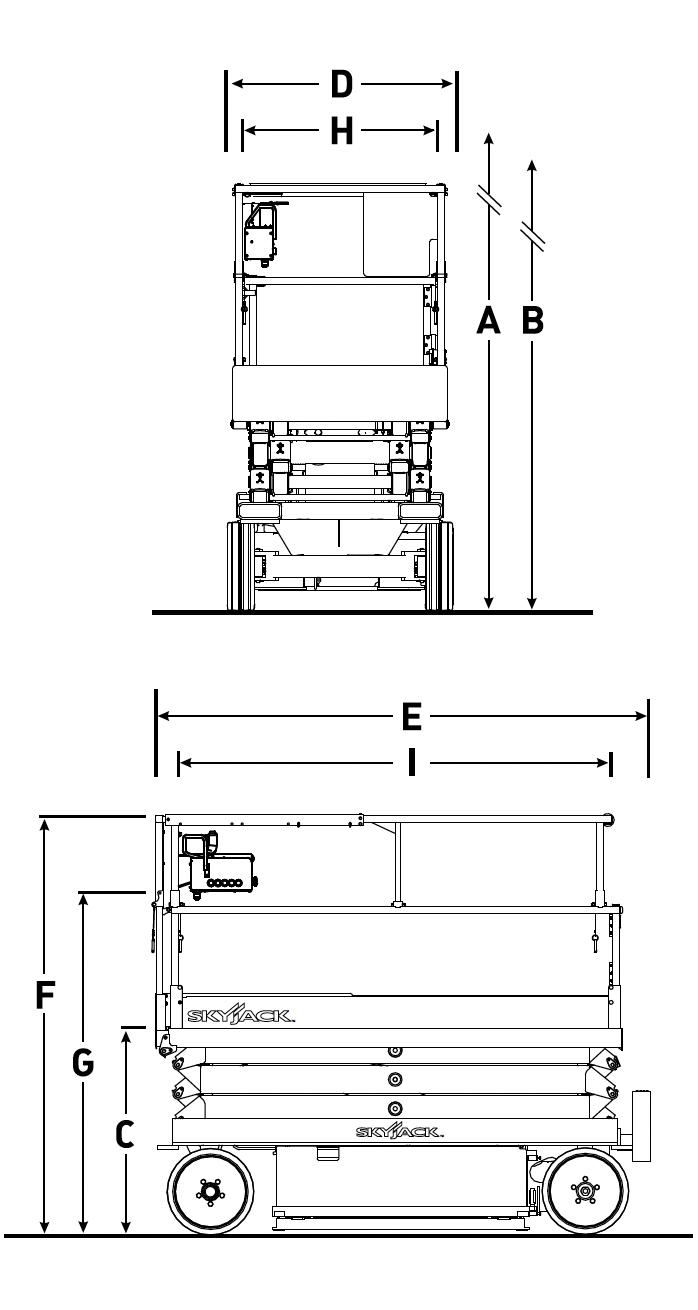

| Working height (A) | 11.58m |
| Platform height (B) | 9.75m |
| Overall height (C) | 1.23m |
| Overall width (D) | 1.17m |
| Overall length (E) | 2.31m |
| Stowed height - rails up (F) | 2.24m |
| Stowed height - rails down (G) | 1.88m |
| Platform width (H) | 1.07m |
| Platform length (I) | 2.13m |
| Extension deck | 1.22m |
| Ground clearance (stowed) | 8.89cm |
| Ground clearance (raised) | 1.91cm |
| Wheelbase | 1.75m |
| Weight | 2,302kg |
| Gradeability | 25% |
| Turning radius (inside/outside) | 1.21/2.37m |
| Raise time | 59 secs |
| Lower time | 49 secs |
| Drive speed (stowed/raised) | 2/0.6 mph |
| Lift capacity | 318kg |
| Lift capacity - extension deck | 113kg |
| Max. occupants | 2 |

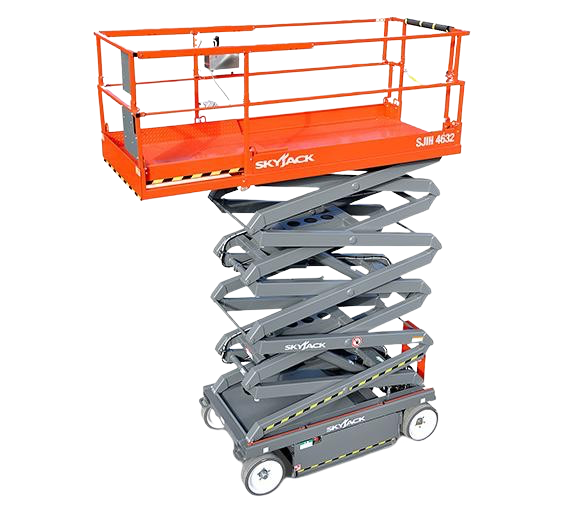

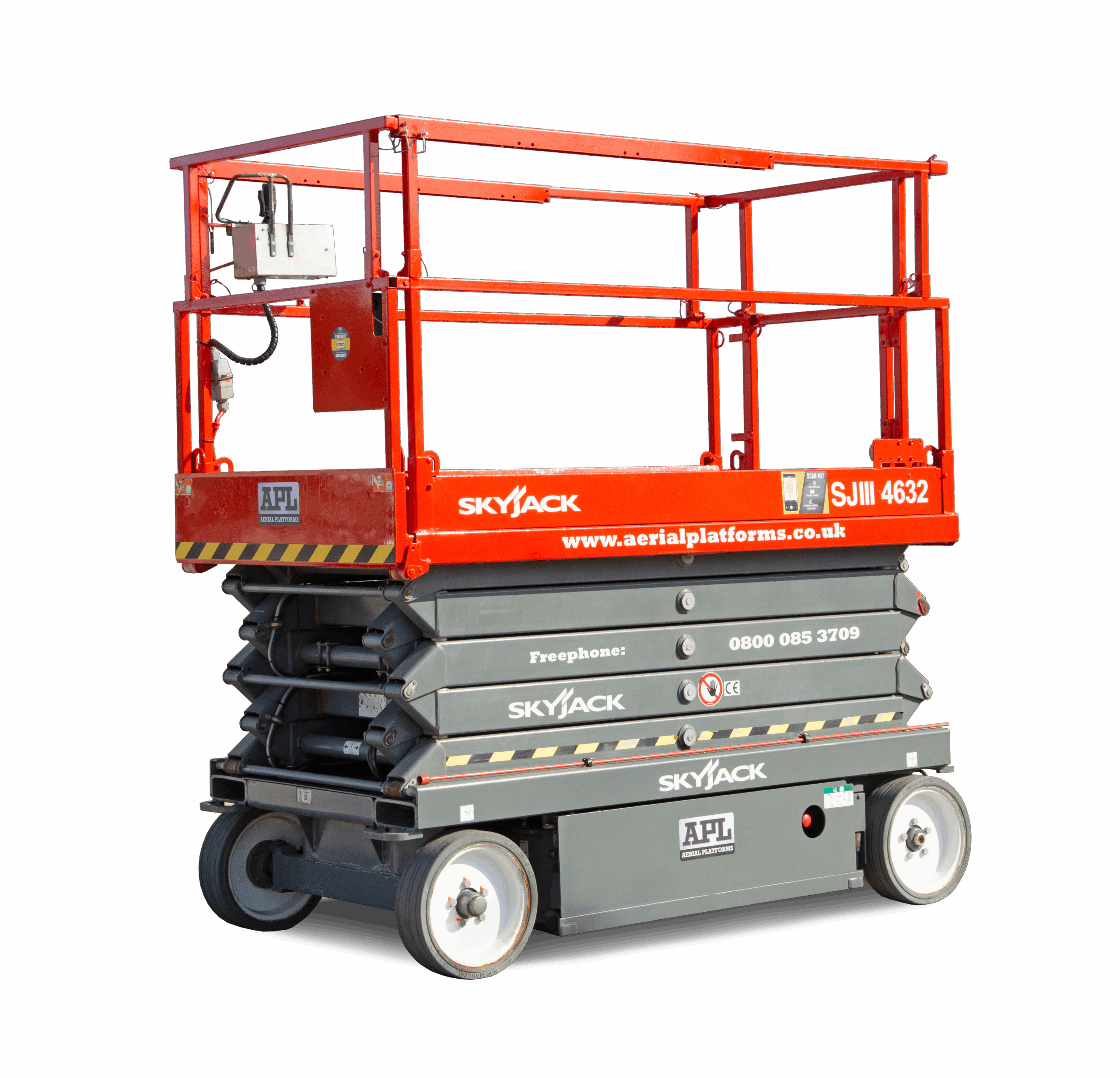

The Skyjack SJ4632 is a versatile electric scissor lift designed for both indoor and outdoor applications. It offers a working height of 11.75 meters and a platform capacity of 317 kg, making it ideal for construction, maintenance, and installation tasks. Featuring rear-wheel hydraulic drive, a spacious platform with an extension deck, and non-marking tires, it ensures easy maneuverability in tight spaces.
The Skyjack SJ4632 has a SWL of 317 kg, accommodating up to two operators with tools and materials.
Capable of handling slopes up to 25%, allowing for operation on inclined surfaces.
Has a spacious 1.07 x 2.13 meter platform with a 1.22-meter roll-out extension deck.
Built-in features like dual holding brakes, tilt alarm, pothole protection, and lanyard attachment points ensure maximum safety while working at height.
Powered by a 24V DC battery system, the Skyjack SJ4632 delivers zero-emission, low-noise performance, making it perfect for indoor use.
Equipped with solid, non-marking tires, the lift moves effortlessly on delicate surfaces without causing damage.
