Electric Scissor Lift

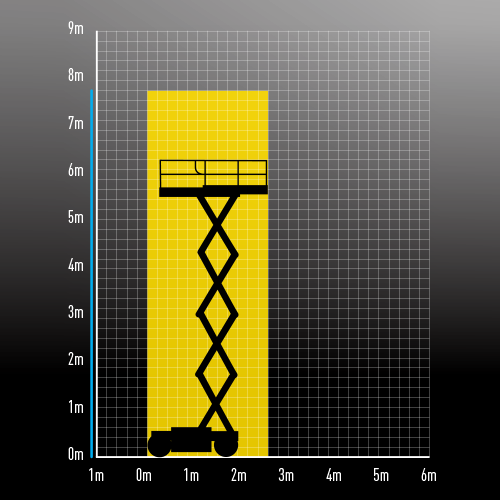

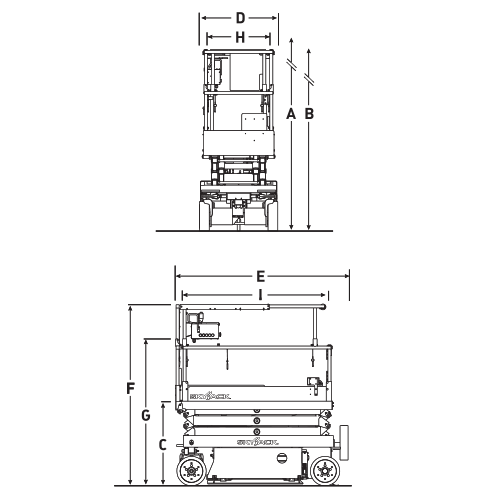

| A. Working Height | 7.62m |
| B. Raised Platform Height | 5.79m |
| C. Lowered Platform Height | 0.99m |
| D. Overall Width | 0.81m |
| E. Overall Length | 1.78m |
| F. Stowed Height (Rails Up) | 1.99m |
| G. Stowed Height (Rails Down) | 1.64m |
| H. Platform Width (Inside Dimension) | 0.66m |
| I. Platform Length (Inside Dimension) | 1.63m |
| Extension Deck | 0.91m |
| Maximum Drive Height | 5.79m |
| Ground Clearance (Stowed) | 6.03cm |
| Ground Clearance (Raised) | 1.78cm |
| Wheelbase | 1.40m |
| Gradeability | 30% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 1.68m |
| Lift Capacity | 249kg |
| Maximum No. of Persons | 2 |
| Wind Rating | 28mph (12.5m/s) |
| Weight | 1,170kg |

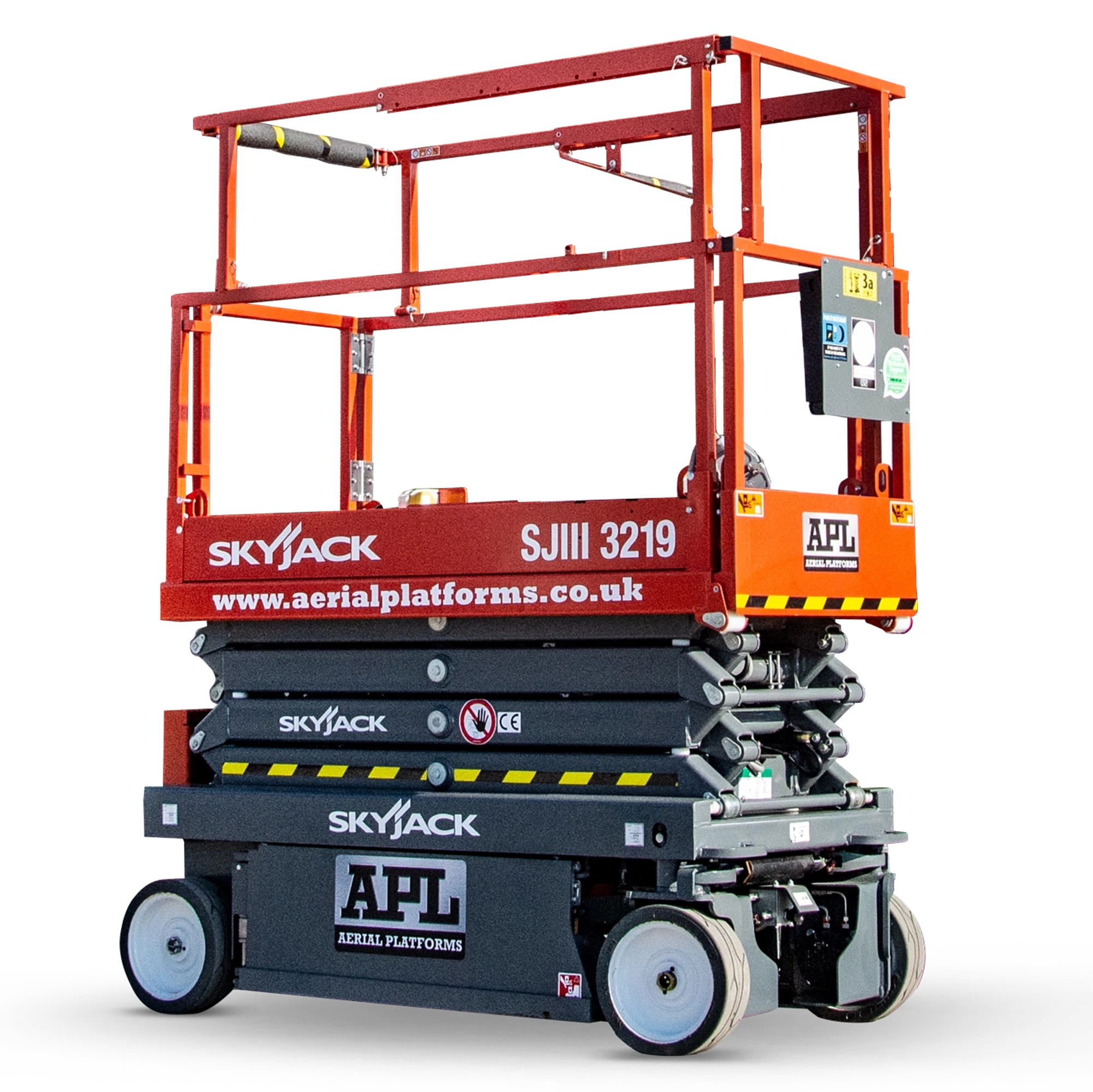

The Skyjack SJ3219 is drivable at full height of 7.62m
Pothole Protection System
Roll Out Extension Deck of 0.91m
Max working height of 7.62m suitable for a number of internal applications
Benefit from a lift capacity of 249kg ideal for 2 persons
Solid Rubber, Non-Marking Tyres
