Electric Scissor Lift
| Working Height | 9.92m |
| Platform Height | 7.92m |
| A. Stowed Height | 2.36m |
| B. Platform Railing Height | 1.10m |
| C. Stowed Height (Rails Folded) | 2.01m |
| D. Platform Size (W x L) | 1.12m x 2.50m |
| E. Deck Extension | 1.27m |
| F. Overall Width | 1.17m |
| G. Overall Length | 2.50m |
| H. Wheelbase | 2.09m |
| I. Ground Clearance | 0.13m |
| Lift Capacity | 454kg |
| Maximum Drive Height | Full Height |
| Gradeability | 25% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.41m |
| Weight | 2,740kg |

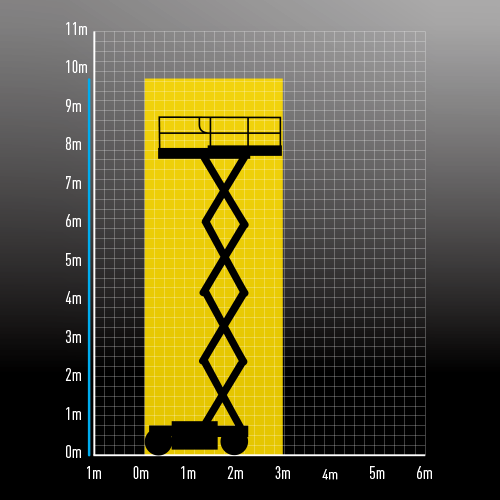

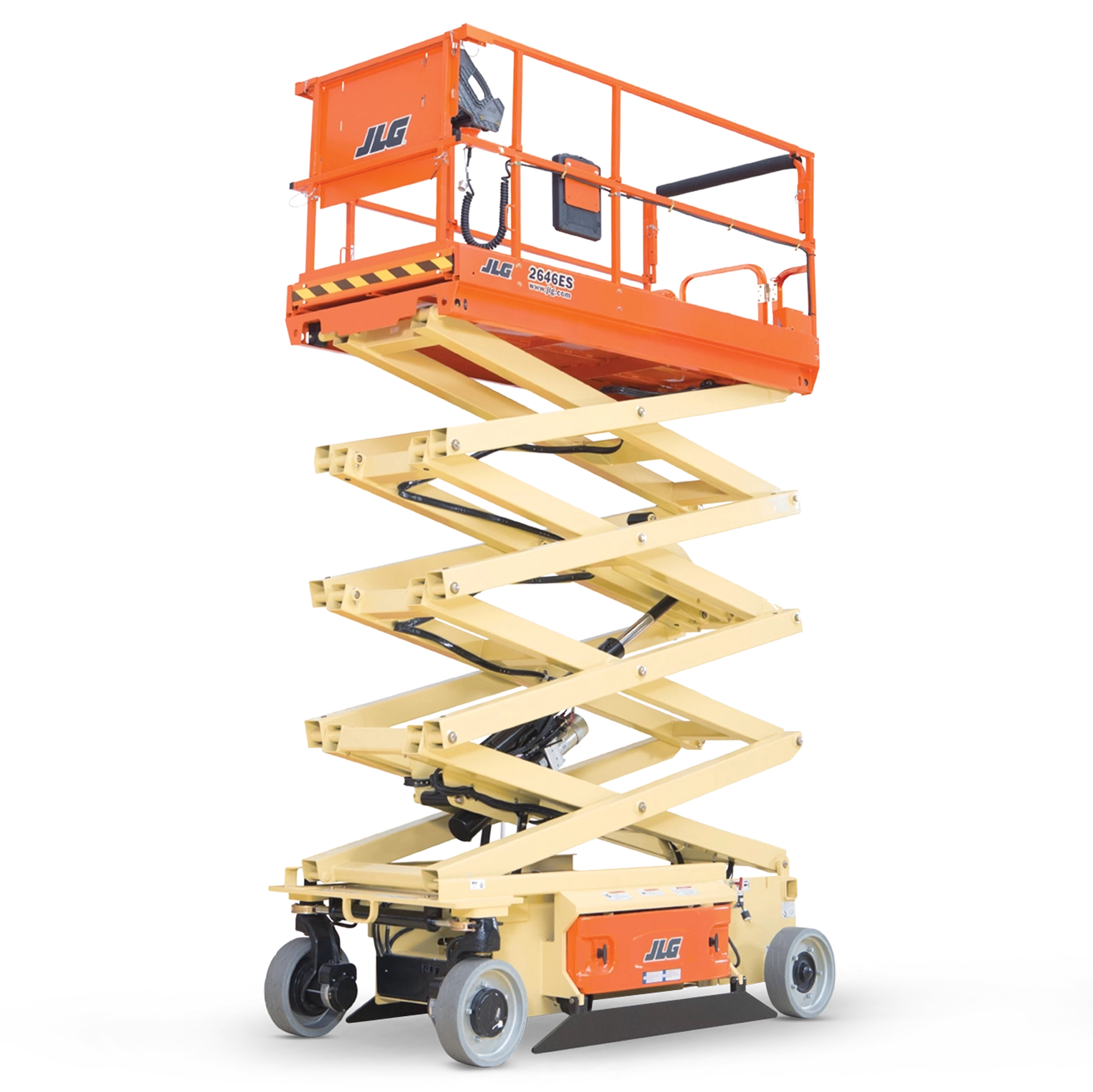

The JLG 2646ES max working height is 9.92m with full proportional drive joystick control
Fold down handrails reducing the machines stowed height from 2.39m to 2.01m
Inside turning radius of 0m allowing for precise manoeuvring in tight spaces
Electric power for zero emissions and near-silent running indoors
Boost efficiency with direct electric drive
Get into more places with compact dimensions and precise control system
