Electric Scissor Lift

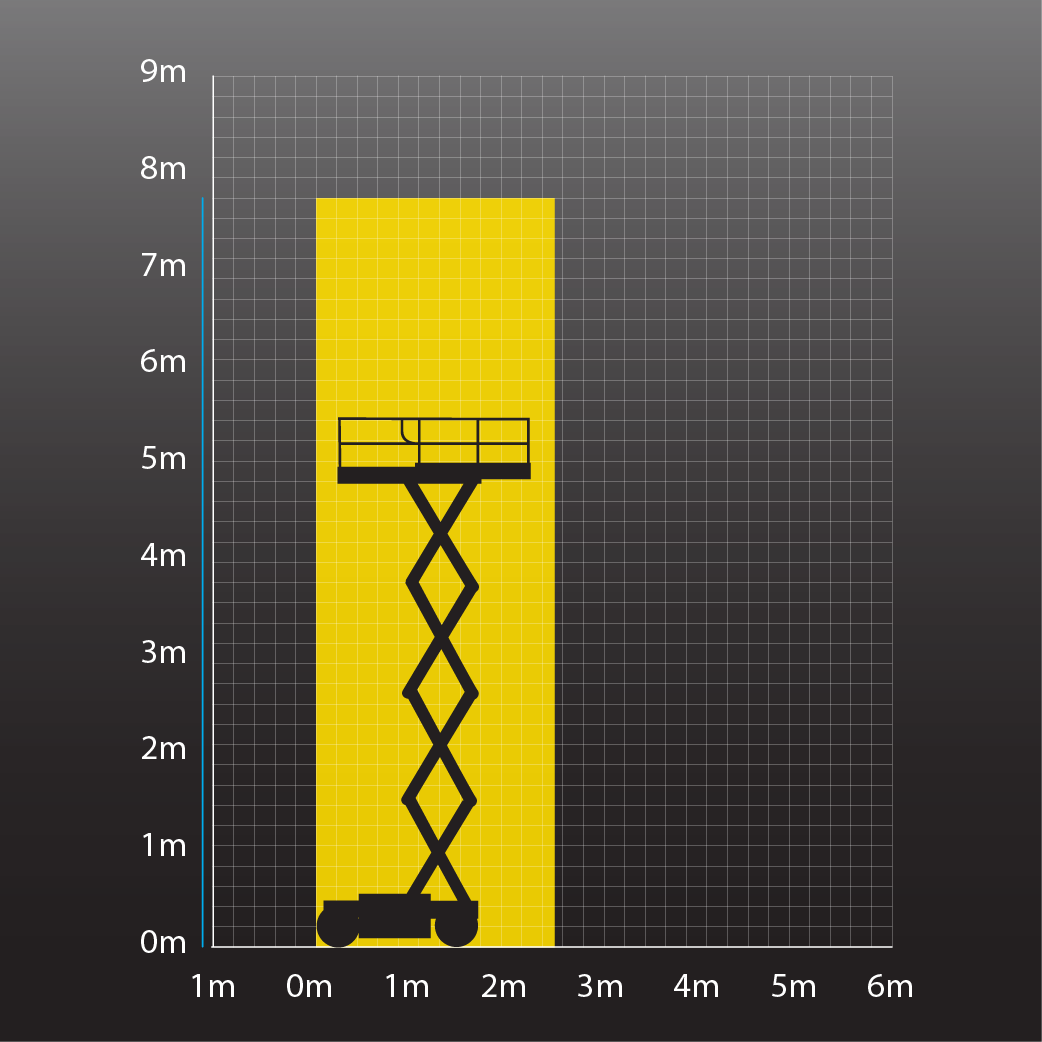

| Working Height | 7.71m |
| Platform Height | 5.71m |
| Platform Size | 1.64m x 0.75m |
| Overall Width | 0.82m |
| Overall Length | 1.78m |
| Stowed Height | 2.12m |
| Extension Deck | 0.90m |
| Wheelbase | 1.33m |
| Max. Platform Occupants | 2 (in) /1 (out) |
| Platform Capacity | 230kg |
| Max. allowable wind speed (outdoor) | 12.5m/s |
| Turning radius (inside) | 0.04m |
| Turning radius (outside) | 1.49m |
| Min. Turning Radius | 1.50m |
| Gradeability | 25% |
| Raising speed (lowered) | 20-25s |
| Weight | 1,526kg |

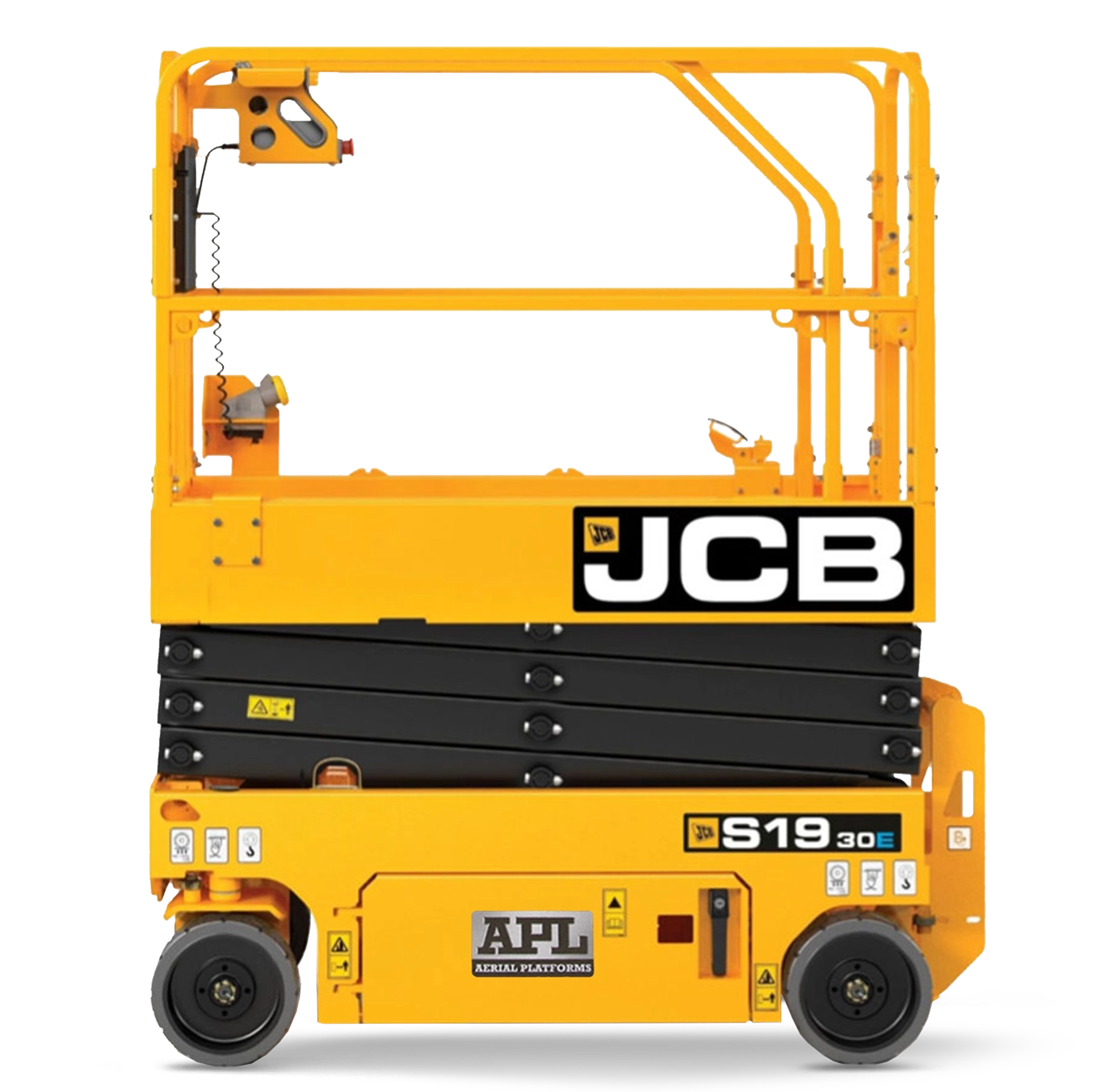

The JCB S1930E is a compact, narrow-aisle electric scissor lift which offers a working height of 7.80m and a lift capacity of 230kg. With compact platform dimensions and an inside turning radius of just 0.04m, it can be manoeuvred in tight areas where space is limited. The control cradle design allows for use on all sides of the basket and enables easy operation from both in the basket and on the ground.
The JCB S1930E control cradle design allows for use on all sides of the basket and enables easy operation from both in the basket and on the ground.
Waterproof cover on the power to platform outlet protects the socket, ensuring it is ready to use.
Easy to use spring clips allow the platform rails to fold down for manoeuvring in confined spaces.
230kg
7.71m
1,526kg
