Electric Scissor Lift

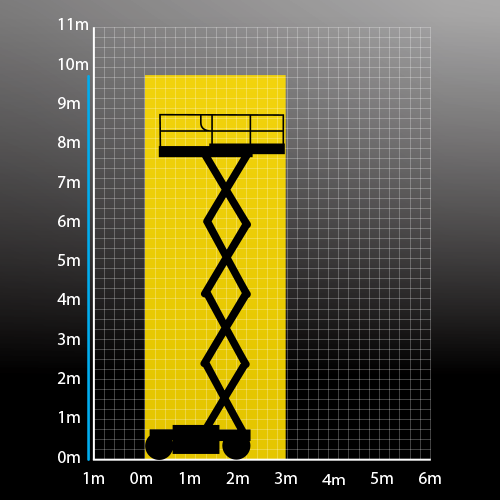

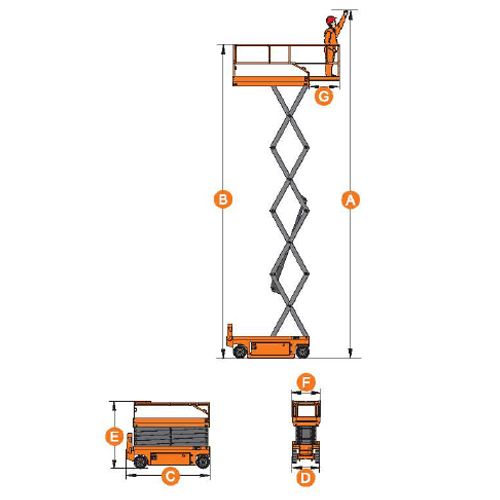

| A. Working Height | 10.00m |
| B. Platform Height | 8.00m |
| Lift Capacity | 450kg |
| C. Overall Length | 2.48m |
| D. Overall Width | 1.15m |
| E. Overall Height (Rails Down) | 1.78m |
| Overall Height (Rails Up) | 2.32m |
| F. Platform Size (Length x Width) | 2.27m x 1.12m |
| G. Deck Extension | 0.90m |
| Ground Clearance (Stowed) | 0.10m |
| Ground Clearance (Raised) | 0.019m |
| Wheelbase | 1.87m |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.20m |
| Gradeability | 25% |
| Weight | 2,655kg |

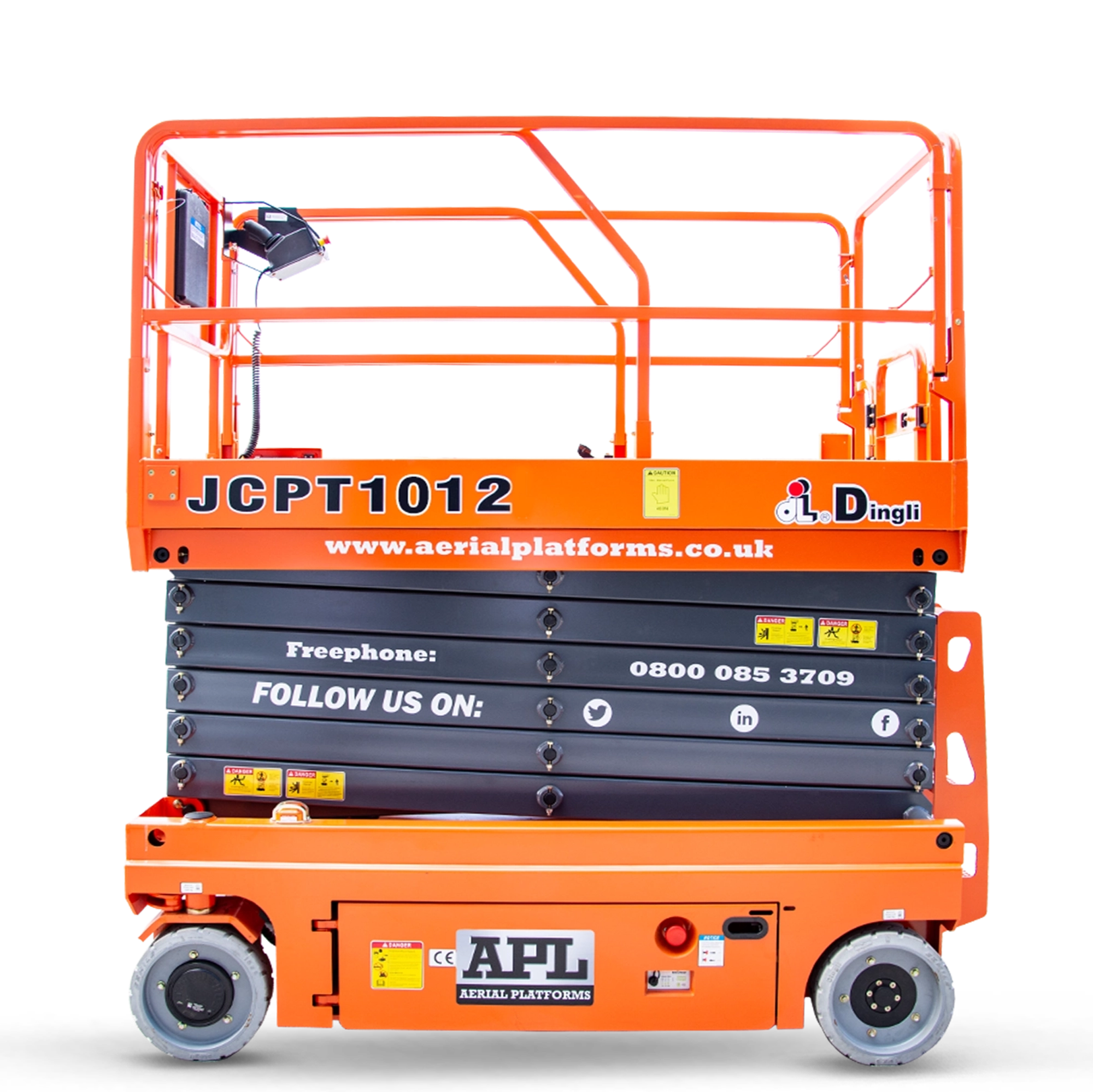

The Dingli JCPT1012DC is a versatile electric scissor lift designed for indoor and outdoor use. It offers a maximum working height of 10 meters and a platform capacity of 450 kg, with a 2.27m by 1.12m platform and a 0.9m extension for extra reach. With a width of 1.15m and a stowed height of 2.32m (1.78m with folded guardrails), it navigates tight spaces easily. Its zero inside turning radius and electric drive system provide smooth, emission-free operation. Weighing 2,655 kg, it is drivable at full height and features proportional controls, automatic pothole protection, and an onboard diagnostic system for easy maintenance.
1.12m x 2.27m platform dimensions with self-lock gate for added safety
Non-Marking tyres suitable for a range of indoor applications
0.90m extending deck for increased access and manoeuvrability
Easy to access Platform Extension Footlock allowing for quick deployment of the 0.90m extending deck
Inside and Outside turning radius of 0m and 2.20m providing better mobility in tight spaces
Low weight of just 2,655kg
