Electric Scissor Lift

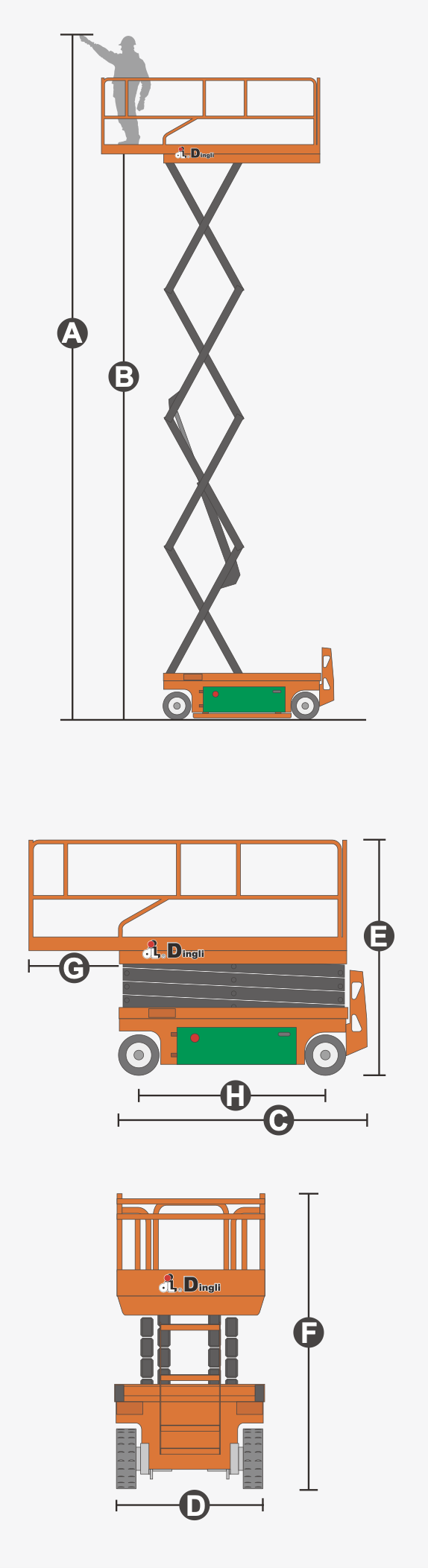

| Working height (A) | 10.0m |
| Platform height (B) | 8.0m |
| Overall length (C) | 2.48m |
| Overall width (D) | 0.83m |
| Overall height (rails up) (E) | 2.36m |
| Overall height (rails down) (F) | 2.00m |
| Platform size (length x width) | 2.27m × 0.81m |
| Platform extension (G) | 0.90m |
| Ground clearance (stowed/raised) | 0.10m/0.019m |
| Wheelbase (H) | 1.87m |
| Turning radius (inside/outside) | 0m/2.10m |
| Platform capacity | 230kg |
| Platform capacity (extension deck) | 113kg |
| Max. occupants | 2 |
| Gradability | 25% |
| Travel speed (stowed) | 5.0km/h |
| Travel speed (raised) | 0.8km/h |
| Max. working slope | X-1.5°/Y-3° |
| Up/down speed | 36/36sec |
| Weight | 2,320kg |

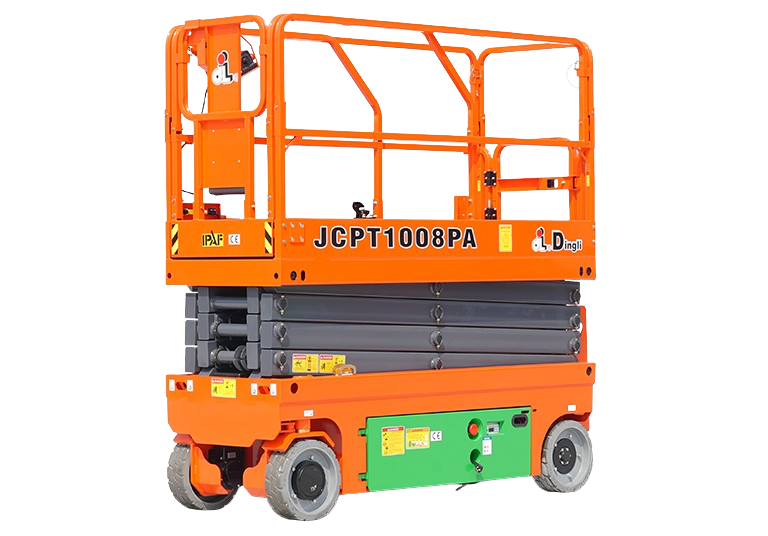

The Dingli JCPT1008PA is a compact and efficient electric scissor lift designed for both indoor and outdoor applications. It offers a maximum working height of 10 meters and supports a platform load capacity of 230 kg, making it ideal for tasks requiring elevated access. Featuring a maintenance-free AC drive system, automatic pothole protection, and an extension platform for enhanced reach, this machine prioritizes safety, reliability, and ease of use.
The Dingli JCPT1008PA supports a safe working load (S.W.L) of 230 kg, accommodating two occupants indoors and one outdoors.
Features a unidirectional extension platform of 0.90 meters for enhanced reach.
Capable of handling slopes up to 25%, ensuring reliable performance on inclined surfaces.
Enhanced safety with automatic pothole protection, ensuring stability during elevated operations.
Features an automatic fault code display, simplifying troubleshooting and reducing service times.
Ideal for navigating tight spaces, this scissor lift's slim profile ensures easy operation in confined areas.
