Electric Scissor Lift

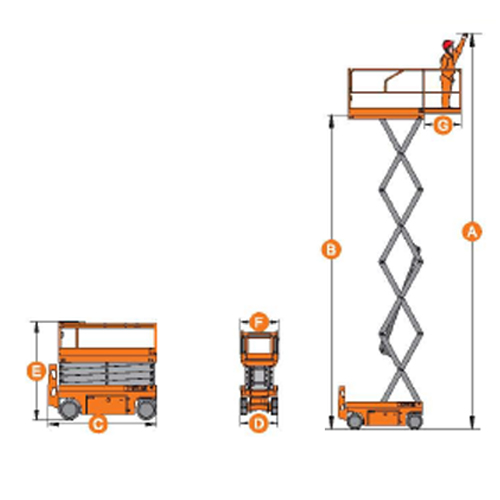

| A. Working Height | 7.80m |
| B. Platform Height | 5.80m |
| C. Overall Length | 1.86m |
| D. Overall Width | 0.76m |
| E. Overall Height (Rails Down) | 1.84m |
| Overall Height (Rails Up) | 2.18m |
| F. Platform Width | 0.74m |
| G. Extension Deck | 0.90m |
| Lift Capacity | 230kg |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 1.64m |
| Gradeability | 25% |
| Weight | 1,415kg |
Compact dimensions of 0.74M x 1.67Ms with an added 0.90M deck extension for further reach. Foldable guardrails reducing the stowed height from 2.18M to 1.84M for extra manoeuvrability
Full proportional controls offering the ability to drive at full height. Fitted with the latest safety features including automatic pothole protection, automatic braking system and tilt sensor alarms
Non marking tyres as standard for work on delicate flooring. Emission-free operation ideal for work indoors and in sensitive environments

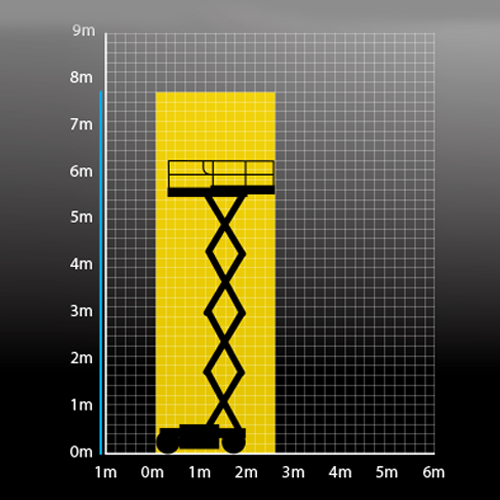

The Dingli JCPT0807DC max working height is 7.80m ideal for use in a number of different industries
230KG platform capacity allowing for 2 men and their tools or equivalent
Machine weight of just 1,415KG
