Diesel Scissor Lift

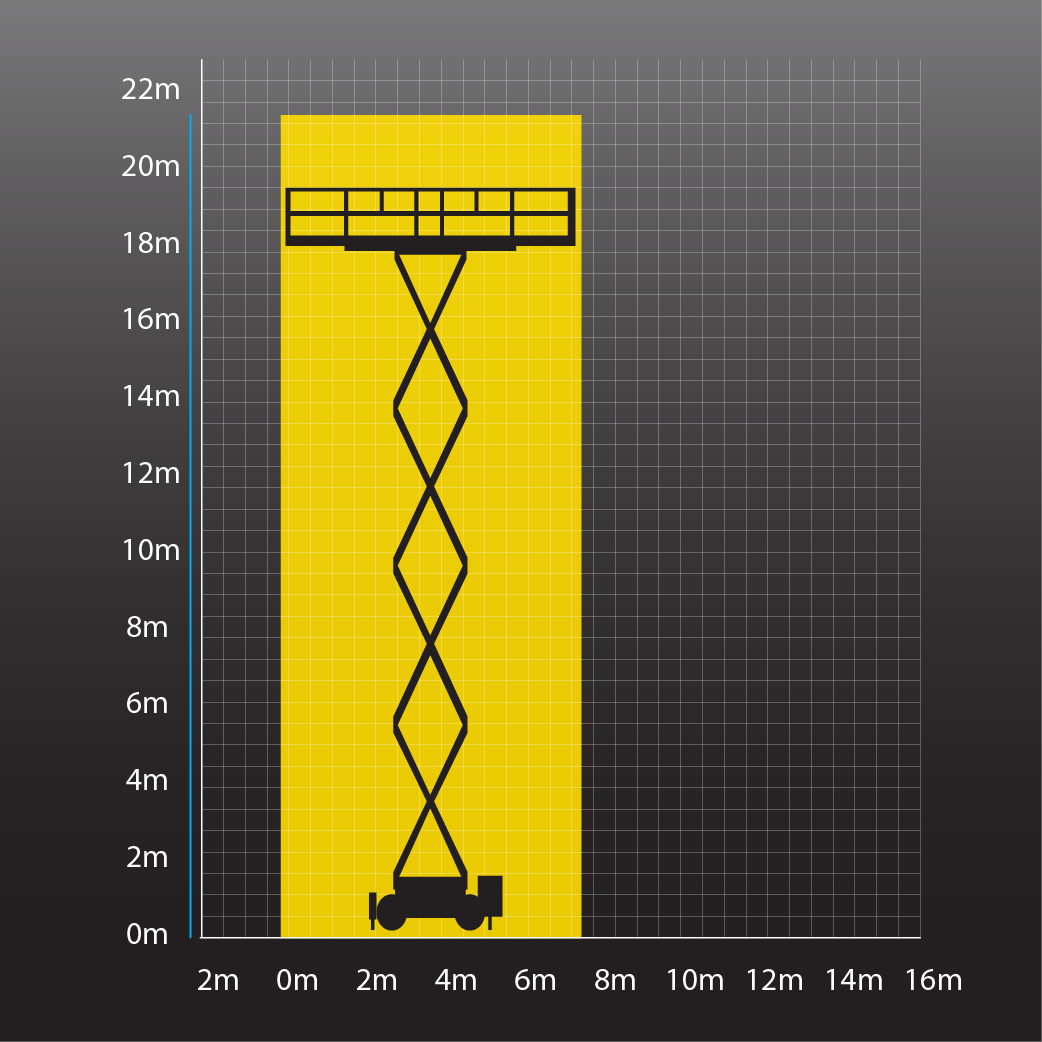

| Max. Working Height | 21.34m |
| Max. Platform Height | 19.51m |

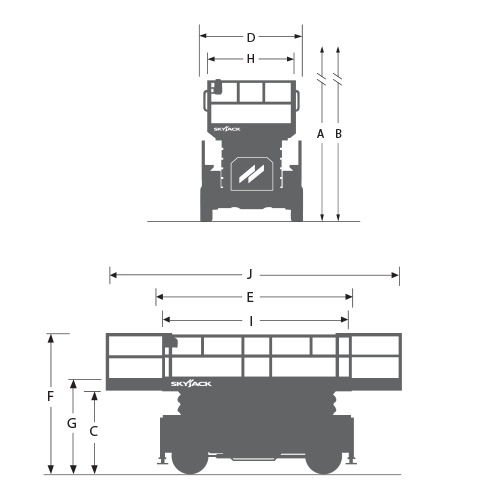

| Overall Length | 4.57m |
| Overall Width | 2.44m |
| Overall Height (Rails Up) | 3.61m |
| Overall Height (Rails Down) | 2.77m |
| Platform Size(Length×Width) | 4.36m×1.90m |
| Platform Extension Size | 1.52m X2 |
| Overall Platform Length (Deck Extended) | 7.21m |
| Maximum Drive Height | 9.14m |
| Wheelbase | 3.02m |
| Turning Radius(Inside/Outside) | 3.33m/6.40m |
| Platform Capacity SWL | 513kg |
| Distributed Capacity (Front/Rear Extension Decks) | 227kg |
| Max. Occupants (0m/s) / (12.5m/s) | (5/3) |
| Gradeability | 30% |
| Up/Down Speed | 86/70sec |
| Weight | 9,997kg |

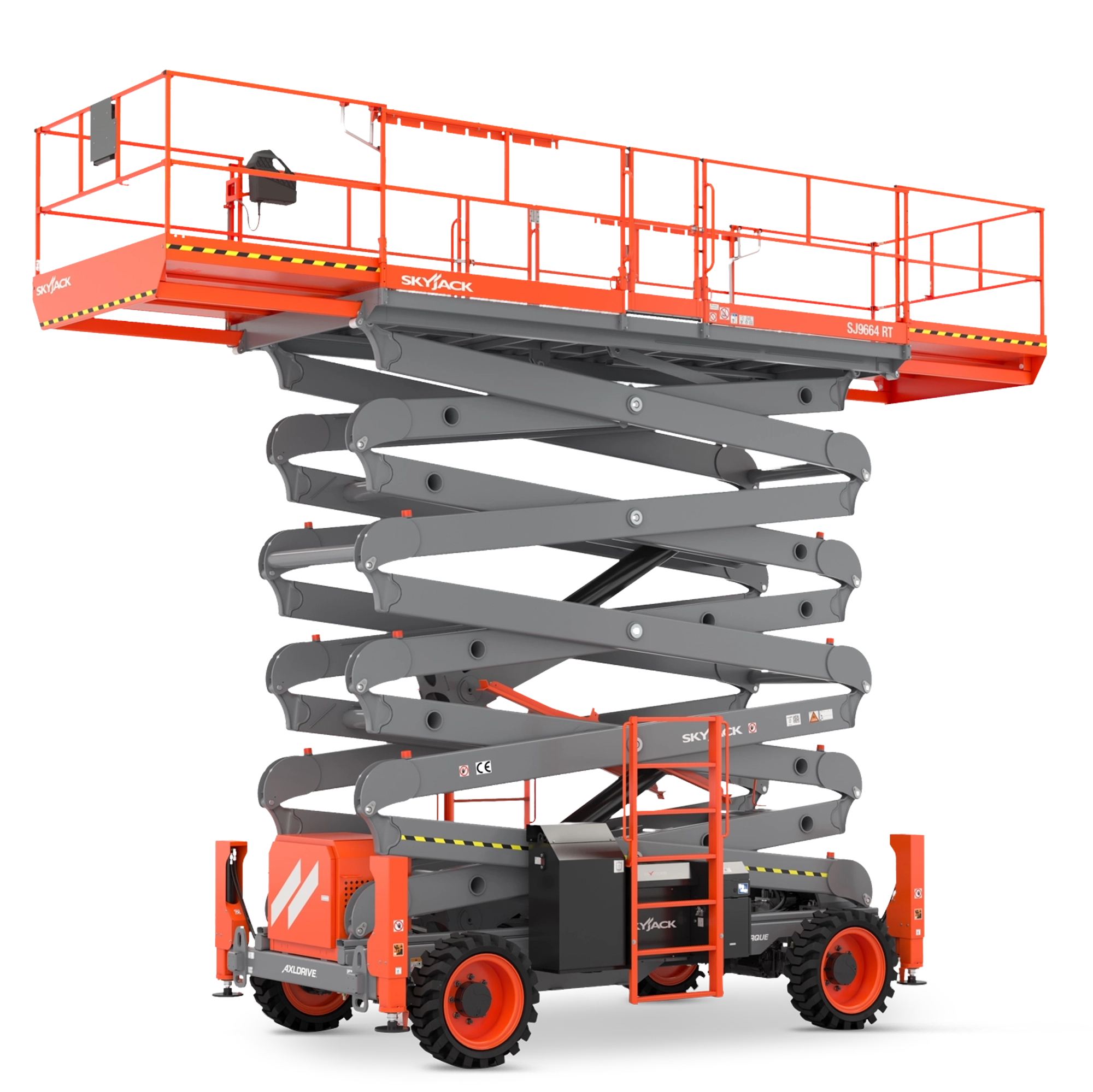

The Skyjack SJ9664RT Rough Terrain Diesel Scissor Lift is a robust and versatile aerial work platform designed to elevate efficiency and productivity in various construction and industrial applications. With its powerful diesel engine and reliable construction, this scissor lift can handle tough terrains and challenging environments with ease. It offers an impressive working height of up to 66 feet (20 meters), providing access to elevated work areas, making it ideal for construction tasks, building maintenance, and installations. It features a 513kg lift capacity enabling a maximum of 5 occupants to work simultaneously along with their equipment and materials, and comes equipped with automatic self-levelling outriggers ensuring excellent stability and operator safety in challenging work environments. Suitable applications for the Skyjack SJ9664RT range from construction projects, including plastering, framing and overhead utilities; Facilities Maintenance, such as roof repairs, lighting installations and routine inspections; and film production jobs for lighting and camera setups.
Drivable at 9.14m
Tilt alarm (4.5° x 2.5°) with drive and lift cut-out
30% Gradeability
21.34m
1.52m x2 Dual extending decks
30% - allowing it to tackle the toughest terrains
