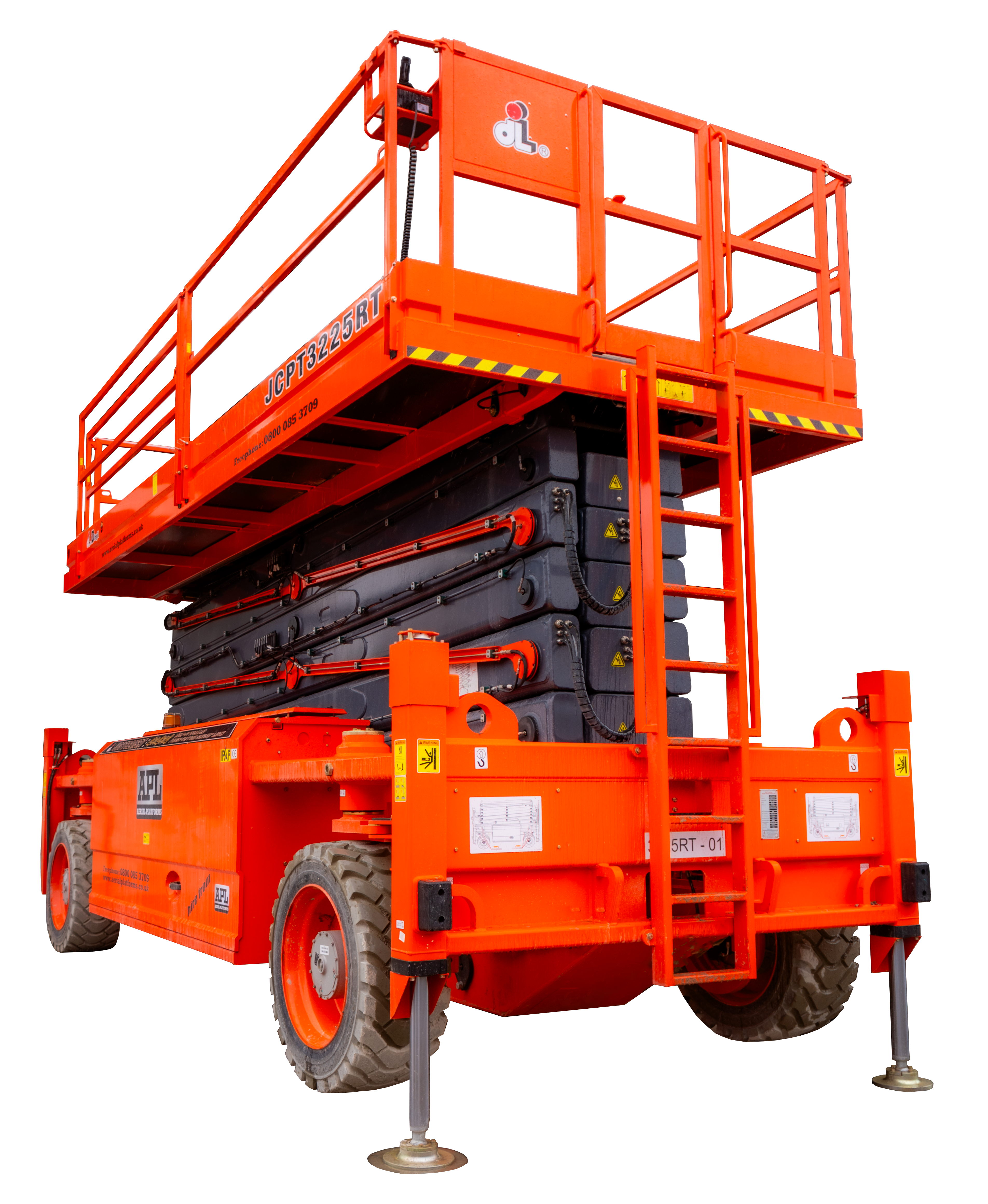

Dingli JCPT3225RT

Diesel Scissor Lift

Platform Specifications

Max. Working Height (A) 32.00m
Max. Platform Height (B) 30.00m
Overall Length (C) 6.73m
Overall Width (D) 2.55m
Overall Height (Rails Up) (E) 4.13m
Overall Height (Rails down) (F) 3.19m
Platform Size (LengthxWidth) 6.20m x 2.45m
Platform Extension Size (G) 2.10m
Ground Clearance 0.20m
Wheelbase (H) 4.86m
Turning Radius(Inside/Outside) 3.80m/6.30m
Platform Capacity SWL 1000KG
Platform Capacity SWL On Extension 1000KG
Max. Occupants 4
Gradability 40%
Travel Speed (Stowed) 2.49mph
Travel Speed (Raised) 0.19mph
Up/Down Speed 150/120sec
Battery Powered
Diesel Powered
Dual Fuel
Hybrid
4x4
Jack Legs
Non Marking Tyres

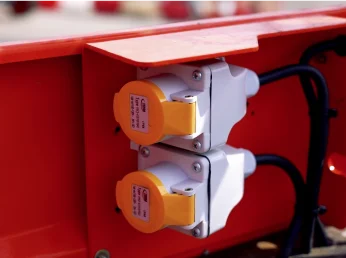

Power-To-Platform
Enquire Now
×

Call our hire desk
0800 085 3709

MACHINE INFORMATION

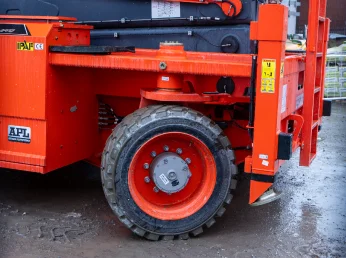

The Dingli 3225 RT is a diesel-powered scissor lift known for its robustness and reliability, specifically engineered for a variety of industrial tasks. This model boasts a maximum working height of 32 meters and is capable of lifting loads up to 1000kg, ensuring a steady and secure platform for personnel to conduct work at elevated levels. Equipped with a 4-wheel drive and steering system, it excels in rough terrain conditions, making it perfectly suited for outdoor operations across uneven landscapes. This versatility renders it an essential tool across numerous industries, particularly beneficial in construction and maintenance projects for installing electrical components, painting, or conducting repairs on tall structures. It also finds extensive use in warehouse environments, facilitating the efficient placement and retrieval of goods stored at height. The 3225 RT comes with an array of safety features, including an automatic levelling hydraulic outriggers, flashing LED beacons, tilt alarms, and platform load sensing technology. These features guarantee a high level of safety for operators working at heights, enabling them to perform with assurance. Its adaptability and wide range of applications make it an indispensable asset in various sectors, enhancing workflow efficiency and productivity on any project site.

STANDARD FEATURES

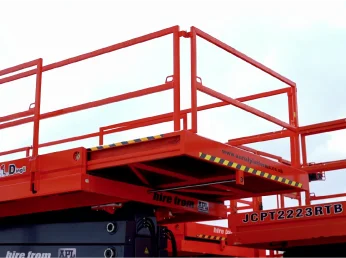

The Dingli JCPT3225RT has a platform Extension Deck of 2.10m

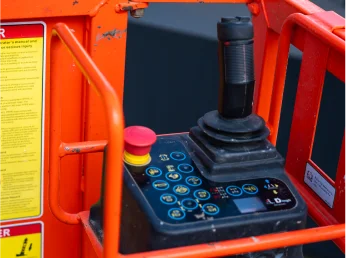

Proportional Joystick Controls

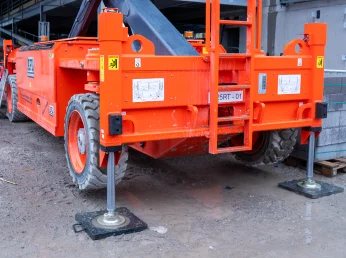

The Dingli JCPT3225RT has self-levelling hydraulic outriggers for use on uneven ground

Platform Capacity

1000kg allowing 4 occupants at once

Platform Length x Width

6.20m × 2.45m

Drivable At Full Height

The Dingli JCPT3225RT is drivable at full working height of 32.00m & full 1000KG capacity

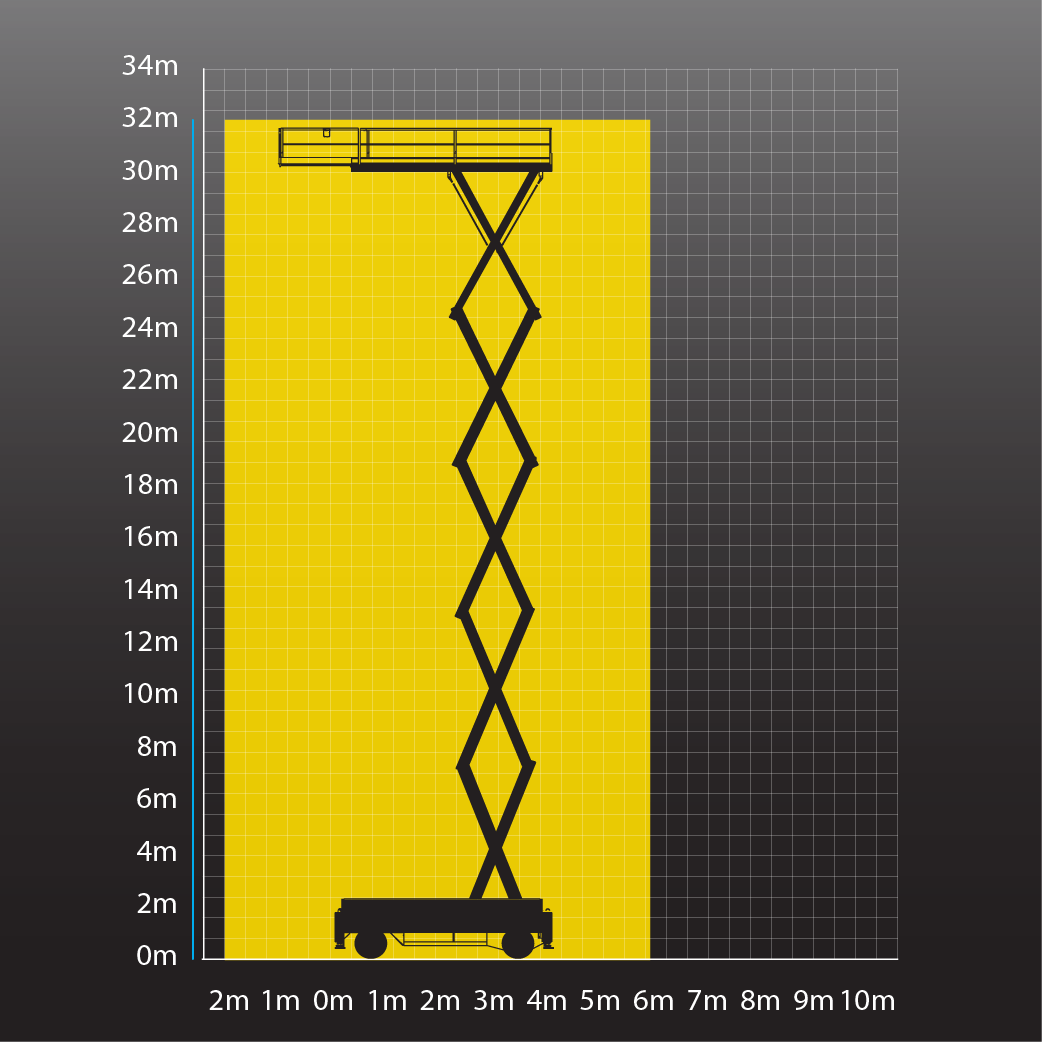

WORKING ENVELOPE

DIMENSIONS
