Bi-Energy Scissor Lift

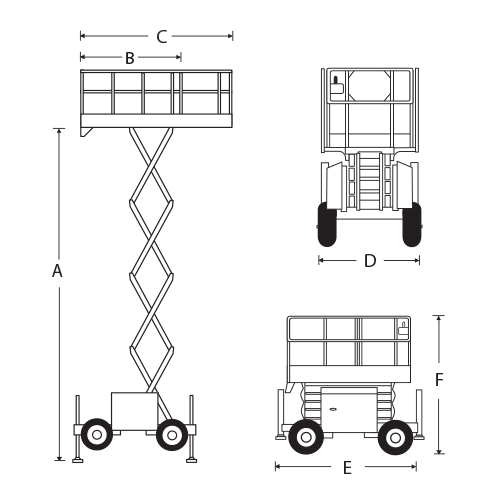

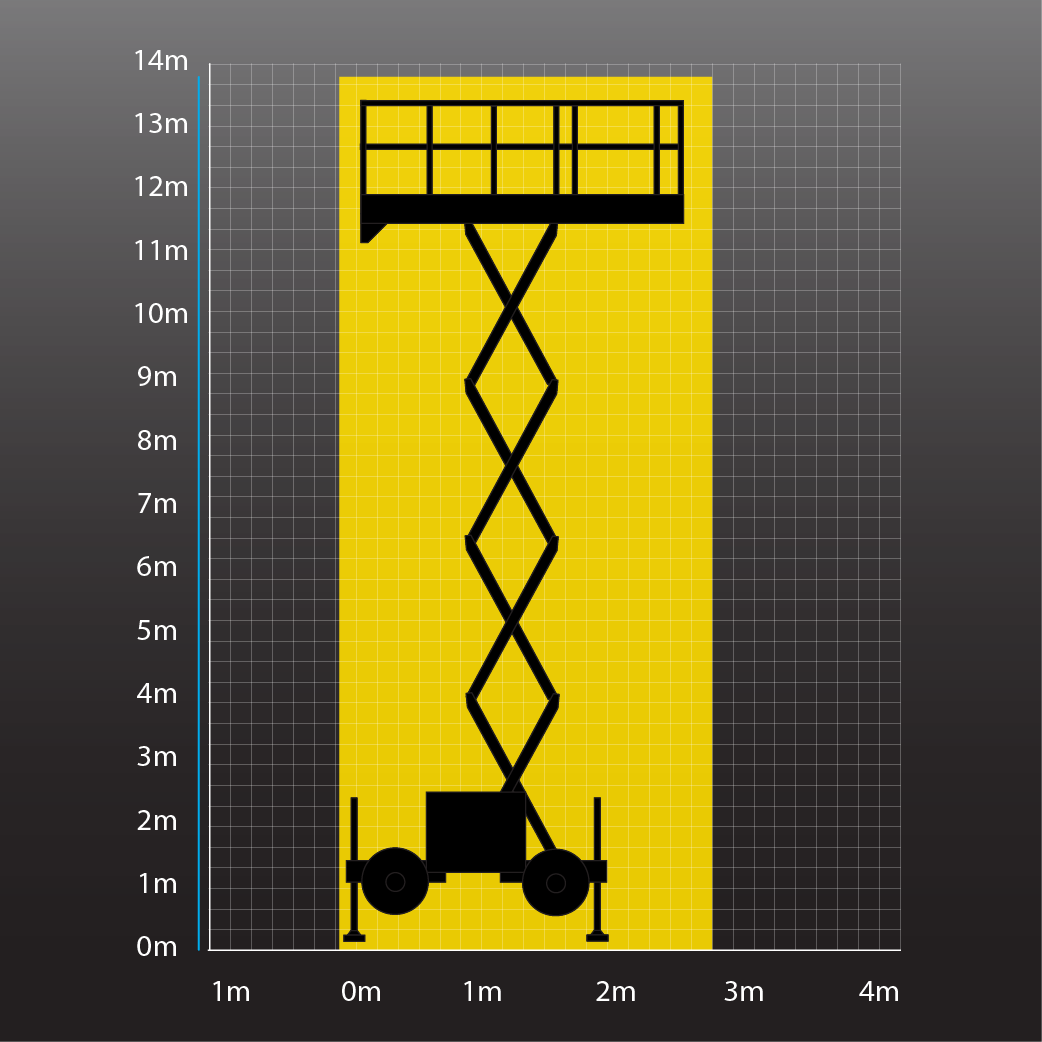

| Max. Working Height | 13.80m |
| Max. Platform Height (A) | 11.80m |
| Platform Size (Stowed) (B) | 1.60m x 2.80m |
| Platform Size (Extended) (C) | 1.60m x 4.00m |
| Extension Deck Length | 1.20m |
| Overall Width (D) | 1.80m |
| Stowed Length (E) | 3.40m |
| Stowed Height (F) | 2.95m |
| Ground Clearance | 330mm |
| Platform Capacity (SWL) | 350kg |
| Max. Drive Height | 11.80m |
| Max. Wind Speed | 12.5m/s |
| Gradeability | 25% |
| Max. Outrigger Levelling (Front to Rear) | 6º |
| Max. Outrigger Levelling (Side to Side) | 10º |
| Max. Drive Speed (Stowed) | 4.5km/h |
| Raise/Lower Time | 50/60 secs |
| Inside Turning Radius | 2.70m |
| Outside Turning Radius | 5.00m |
| Weight | 4,090kg |
The Snorkel S3970BE is a compact rough-terrain scissor lift which can be operated on either diesel or electric power. It features 4-wheel drive and non-marking rough terrain tyres, which combined with its self-levelling outriggers and oscillating axle make it perfect for both indoor and outdoor work. The S3970BE boasts some impressive specifications including a 13.80m working height and a 350kg safe working load (SWL). It also comes equipped with power to platform and a large platform size of 1.60m x 4.00m (with 1.20m deck extended) meaning 2 operatives and their tools can work safely and comfortably at height.
The Snorkel S3970BE can be operated on both electric and diesel power making it suitable for indoor and outdoor use.
Automatic self-leveling outriggers and rough terrain tyres enable it to be used on rough, uneven ground.
Spacious 1.60m x 2.80m platform with additional 1.20m deck extension
13.80m
25%
350kg
