Electric Mast Lift

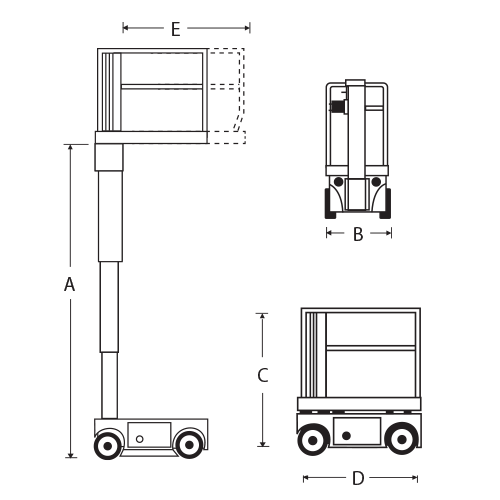

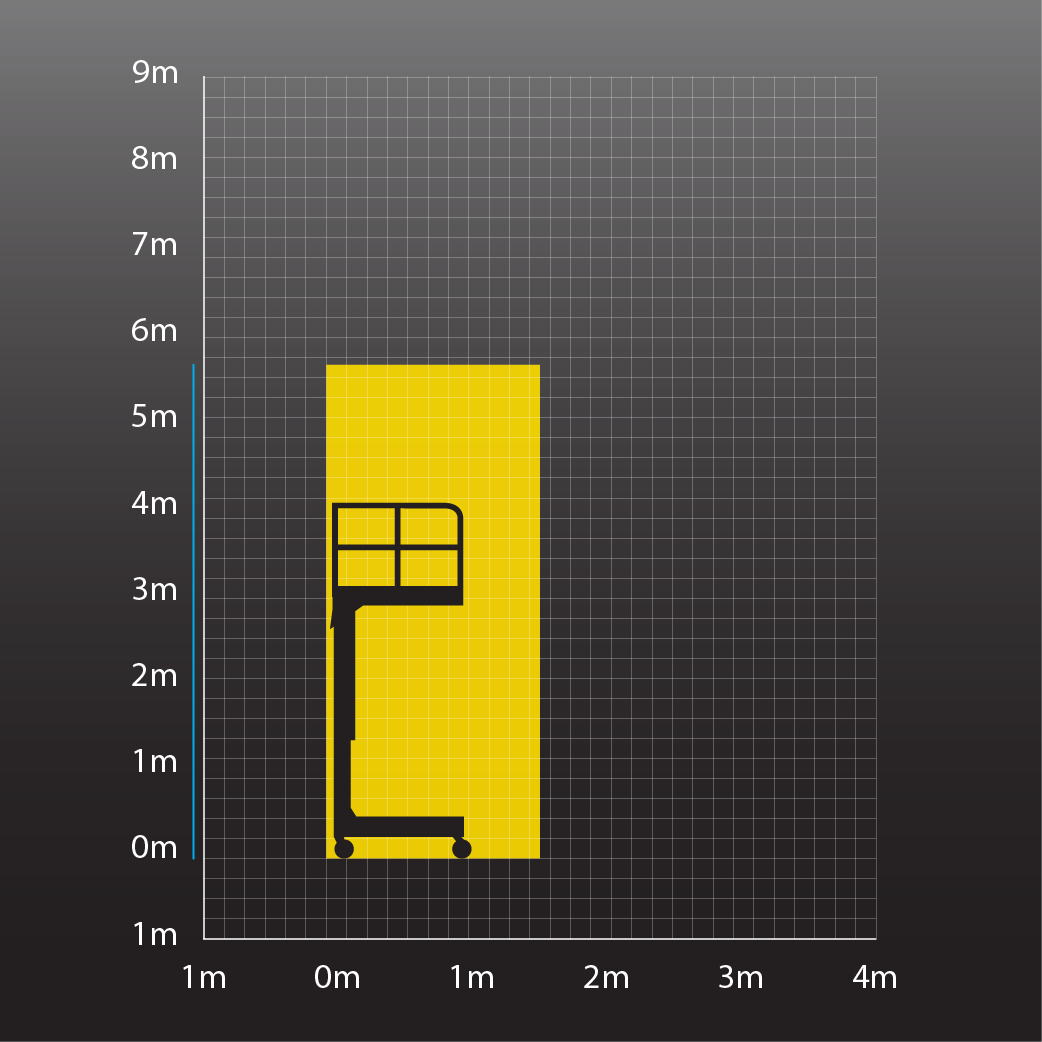

| Max. Working Height | 5.65m |
| Max. Platform Height (A) | 3.65m |
| Overall Width (B) | 0.76m |
| Overall Length (D) | 1.37m |
| Stowed Height (C) | 1.70m |
| Platform Size (Stowed) | 0.68m x 0.99m |
| Platform Size (Extended) | 0.68m x 1.50m |
| Deck Extension | 0.51m |
| Ground Clearance | 76mm |
| Platform Capacity SWL | 227kg |
| Max. Drive Height | 3.65m |
| Max. Wind Speed | 12.5m/s |
| Gradeability | 25% |
| Max. Operating Slope (side to side) | 2º |
| Max. Operating Slope (front to back) | 2º |
| Inside Turning Radius | 0m |
| Outside Turning Radius | 1.40m |
| Weight | 1,016kg |

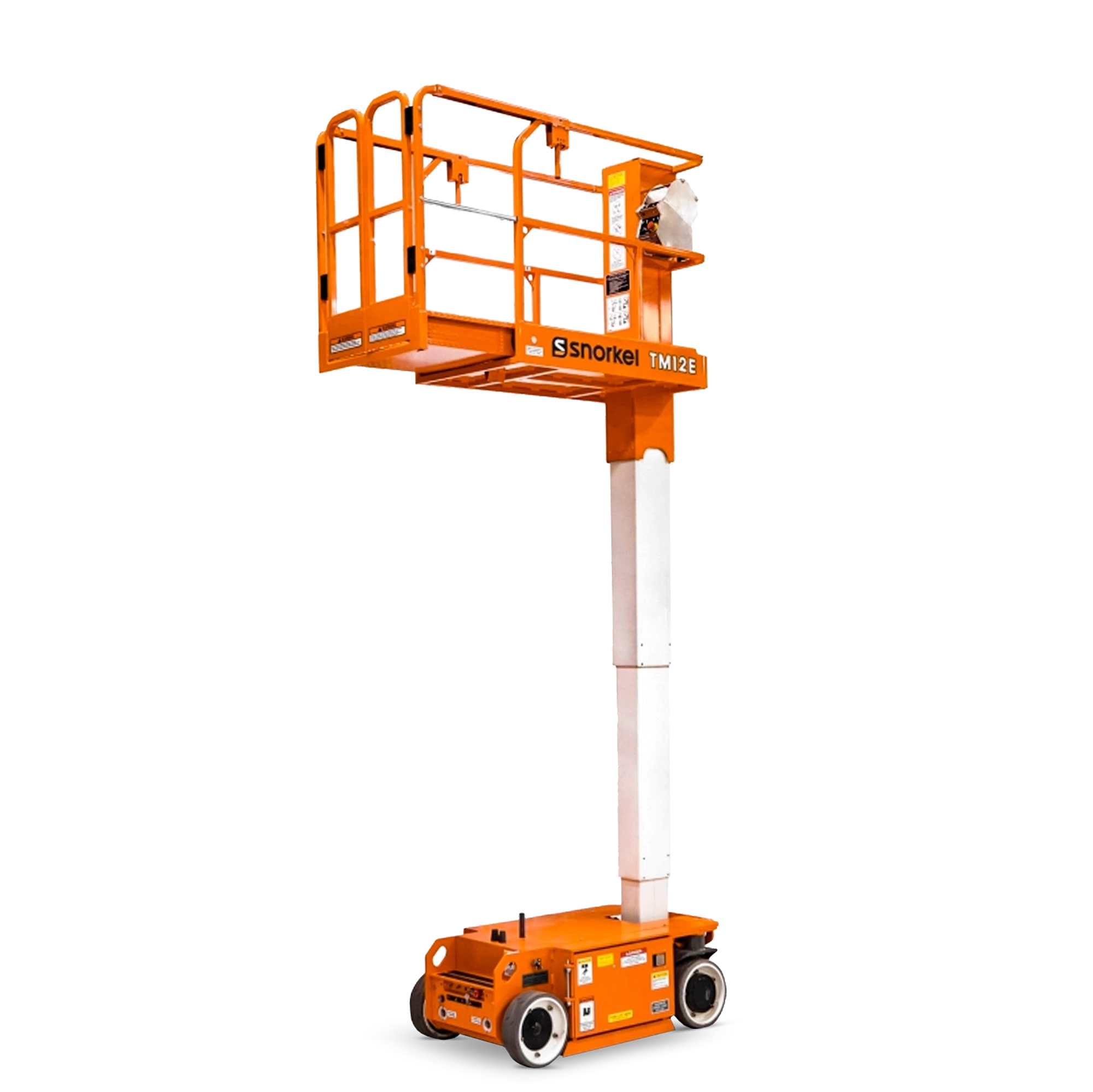

The Snorkel TM12E is a telescopic mast lift that features an efficient electric drive system offering longer duty cycles, an electric braking system and an inside turning radius of 0m. Its 227kg lift capacity allows 2 persons (indoor) and 1 person (outdoor) to work safely at a maximum platform height of 3.65m. It features a roll out extension deck adding 0.51m of additional length to its existing platform length of 0.99m, and comes equipped with power to platform allowing the operator's tools to be powered directly from the platform and eliminating trailing cables which could present a trip hazard.
0.51m roll-out deck extension.
Non-marking rubber tyres and electric power source, suited for indoor applications.
Saloon-door style entry gates for easy entering and exiting of the machine.
The Snorkel TM12E max. working height of 5.65m makes it ideal for internal fit-outs and other low level tasks.
Compact dimensions of just 0.68m (W) x 0.99m (L) x 1.70m (H) enabling it to be operated in between warehouse racking and other tight spaces.
The Snorkel TM12E 0m/1.40m Inside/Outside turning radius allows for excellent manoeuvrability.
