Diesel Scissor Lift
| A. Working Height | 11.58m |
| B. Raised Platform Height | 9.75m |
| C. Lowered Platform Height | 1.37m |
| D. Overall Width | 1.76m |
| E. Overall Length | 3.35m |
| F. Height Stowed (Rails Up) | 2.51m |
| G. Height Stowed (Rails Down) | 1.75m |
| H. Platform Width (Inside Dimension) | 1.42m |
| I. Platform Length (Inside Dimension) | 2.44m |
| Deck Extension | 1.52m |
| Ground Clearance | 0.20m |
| Wheelbase | 2.04m |
| Gradeability | 40% |
| Inside Turning Radius | 1.52m |
| Outside Turning Radius | 3.96m |
| Maximum Drive Height | Full Height |
| Lift Capacity | 454kg |
| Maximum No. of Persons | 4 |
| Weight | 3,475kg |

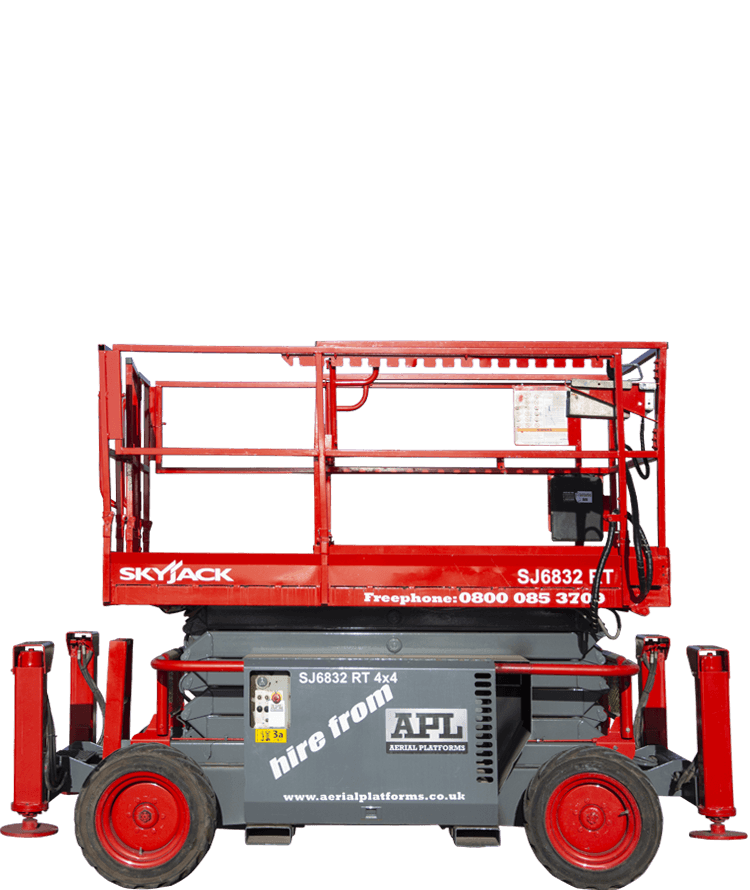

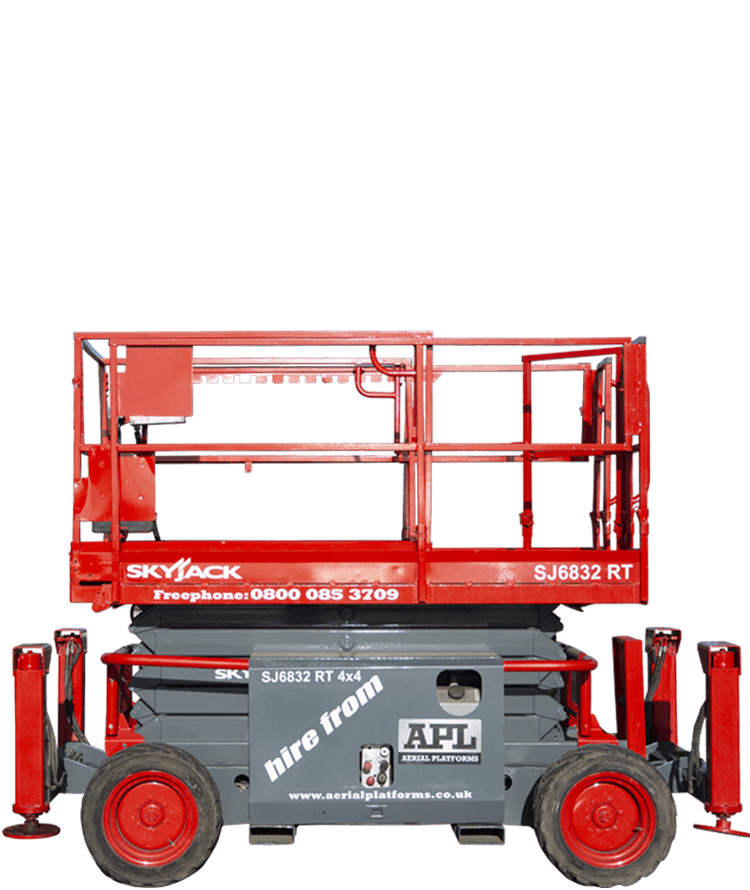

The Skyjack SJ6832RT is drivable at full height with 1.52M roll out deck fully extended
Up to 40% gradeability
Independent/auto levelling outriggers
Max working height of 11.58m suitable for a number of external applications
Increased productivity thanks to a 454KG platform capacity allowing for multiple men and their tools to be lifted
Foam-filled rough-terrain tyres as standard allowing for increased manoeuvrability on uneven surfaces.
