Electric Mast Boom Lift

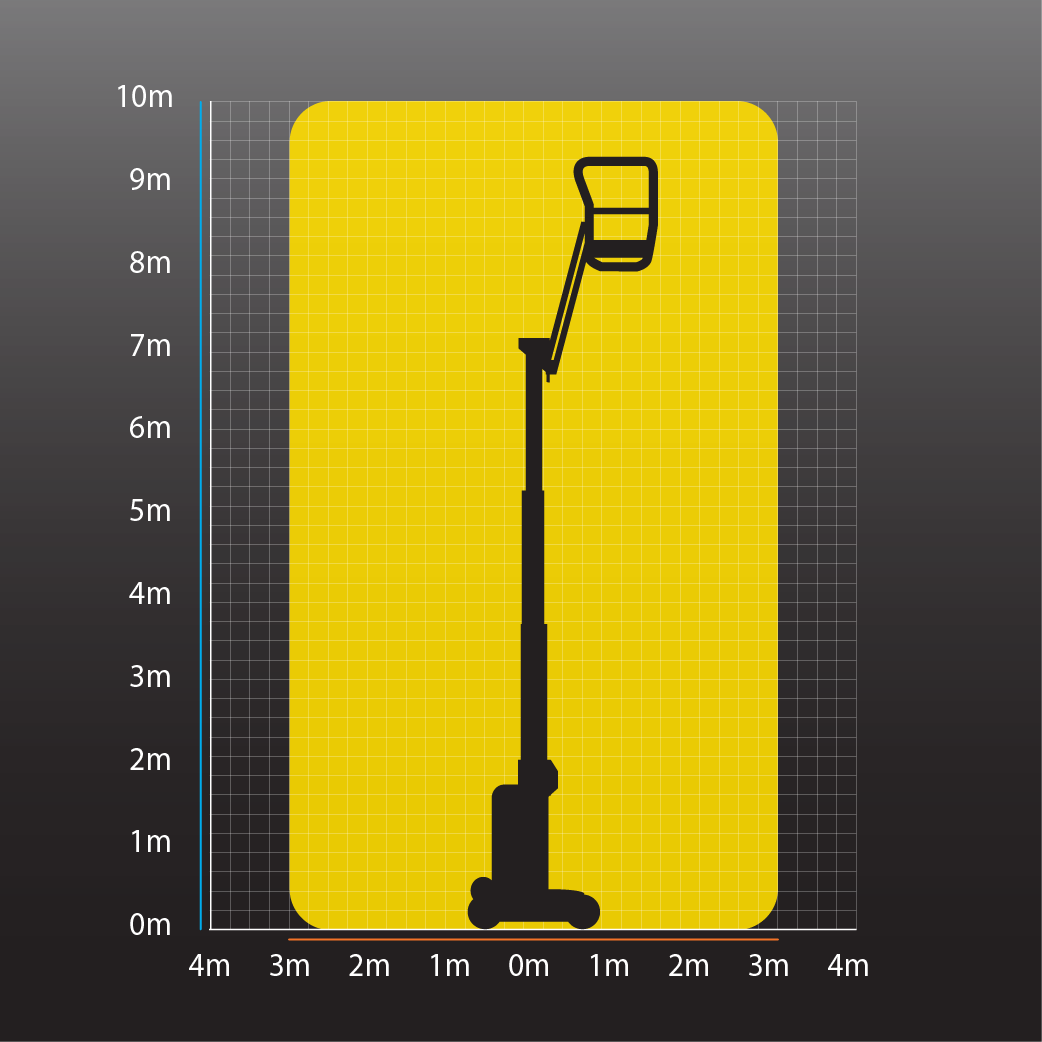

| Working Height | 10.10m |
| Platform Height | 8.10m |
| Working Outreach | 3.38m |
| Up and Over Height | 6.51m |
| Swing (non continuous) | 345° |
| Lift Capacity | 200kg |
| Jib - Overall Length | 1.60m |
| Jib - Range of Articulation | 126° (+65°/-61°) |

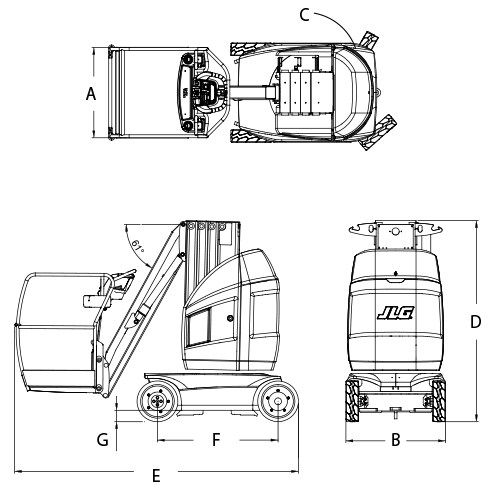

| A. Platform Size (L x W) | 0.70 x 0.90m |
| B. Overall Width | 0.99m |
| C. Tailswing | 12cm |
| D. Height Stowed | 1.99m |
| E. Overall Length (Standard Platform) | 2.82m |
| F. Wheelbase | 1.20m |
| G. Ground Clearance | 10cm |
| Turning Radius (Inside/Outside) | 0.55m/1.99m |
| Gradeability | 25% |
| Weight | 2,980kg |
0.90 m x 0.70 m (L x W) steel platform with Slide bar rear entry

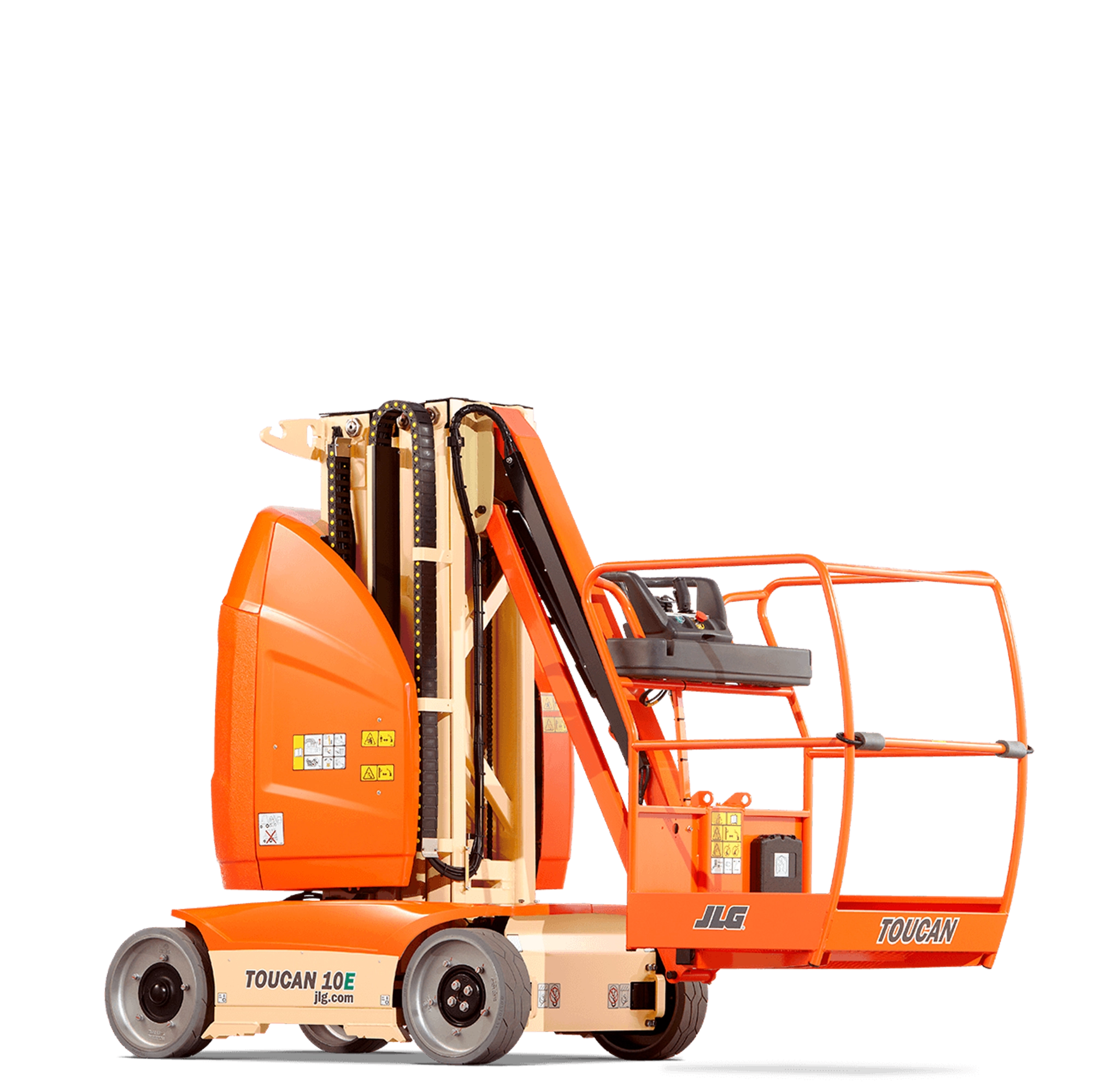

The JLG TOUCAN 10E mini joysticks provide proportional mast and jib lift/lower functions
Heavy duty steel roller mast with 345º rotation
Electric power for zero emissions and near-silent running indoors.
No waiting with immediate-response AC drive motors for greater torque and efficiency.
Get into more places with compact dimensions and precise control system.
