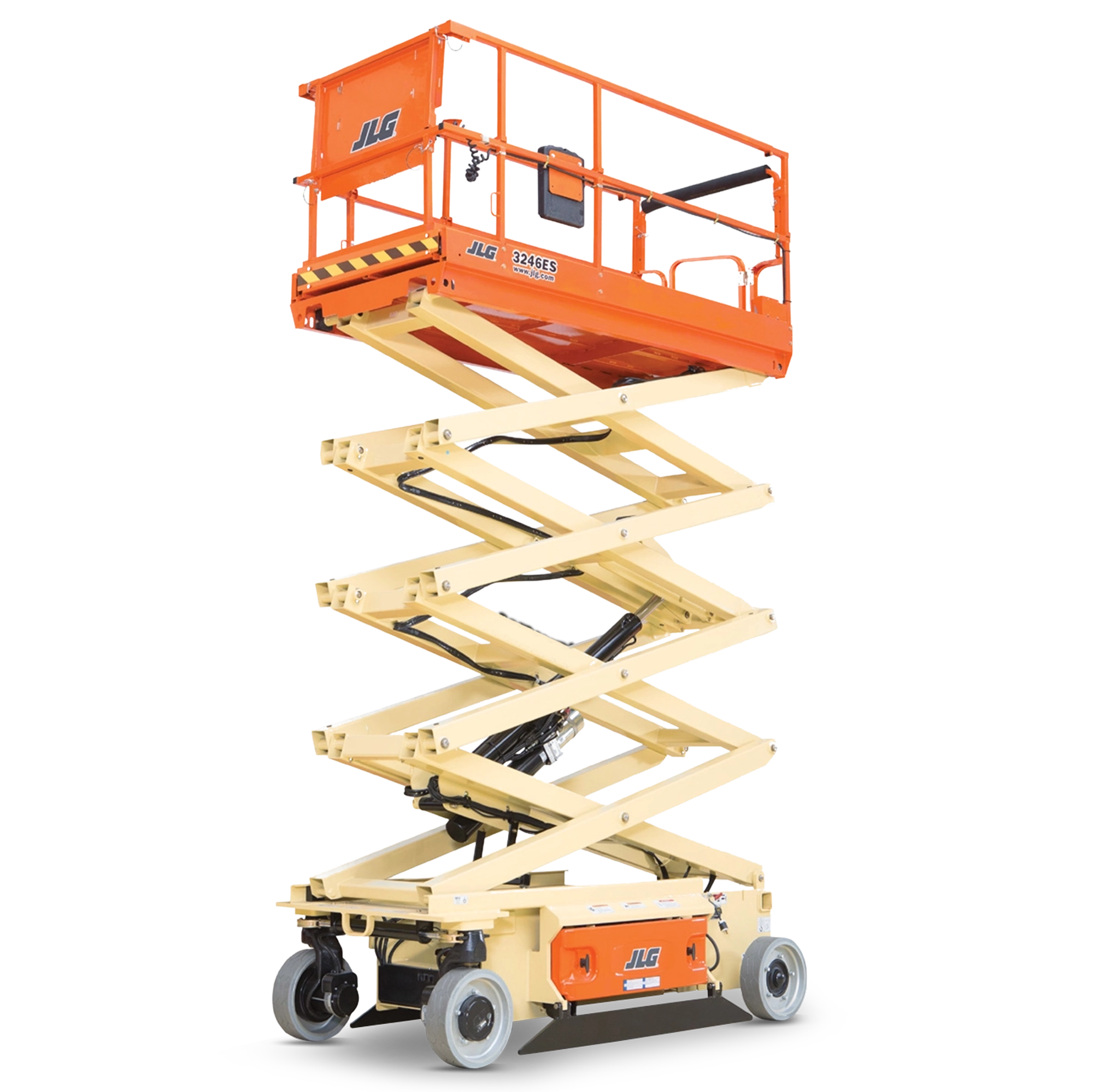

Electric Scissor Lift

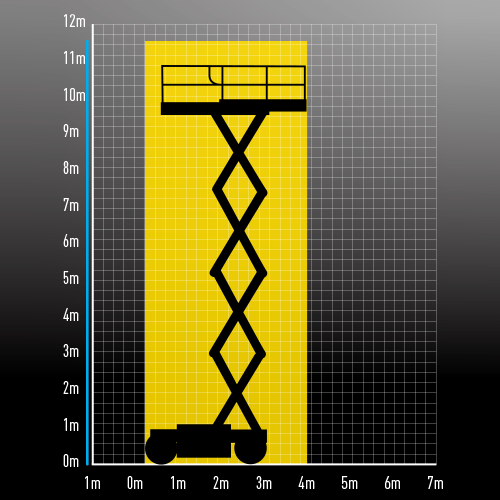

| Working Height | 11.68m |
| Platform Height | 9.68m |

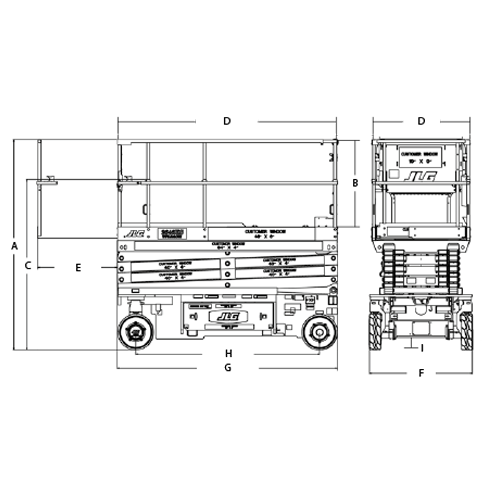

| A. Stowed Height | 2.39m |
| B. Platform Railing Height | 1.10m |
| C. Stowed Height (Rails Folded) | 2.01m |
| D. Platform Size (W x L) | 1.12m x 2.50m |
| E. Deck Extension | 1.27m |
| F. Overall Width | 1.17m |
| G. Overall Length | 2.50m |
| H. Wheelbase | 2.09m |
| I. Ground Clearance | 0.13m |
| Lift Capacity | 320kg |
| Maximum Drive Height | Full Height |
| Gradeability | 25% |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.41m |
| Weight | 2,905kg |
The JLG 3246ES 1.27m roll-out deck extension provides greater access
Foldable guardrails reducing the machines stowed height to 2.01m for increased manoeuvrability in tight spaces
Power-to-platform as standard for increased productivity
Electric power for zero emissions and near-silent running indoors
Boost efficiency with direct electric drive
Get into more places with compact dimensions and precise control system
