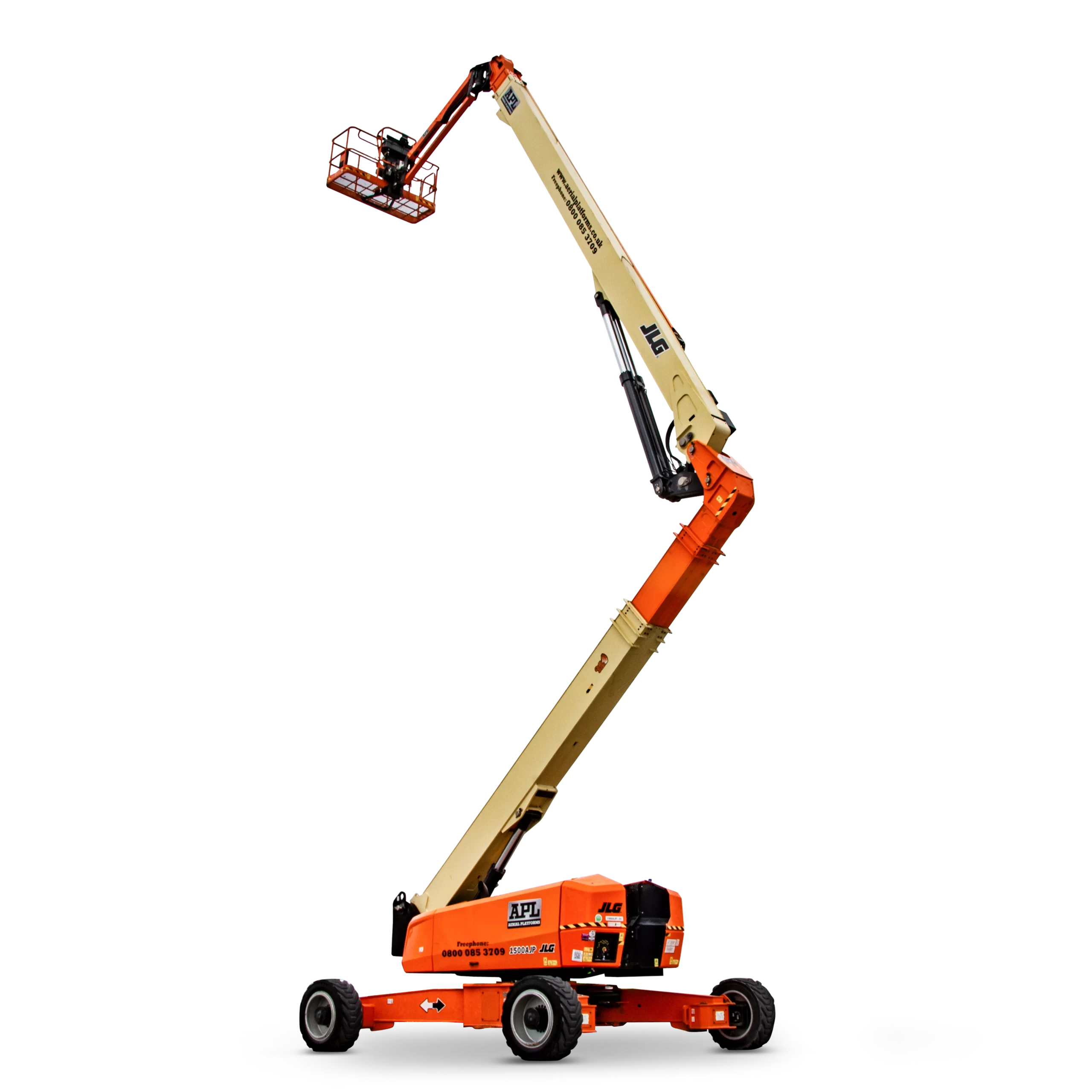

Diesel Boom Lift
| Working Height | 48.15m |
| Platform Height | 46.15m |

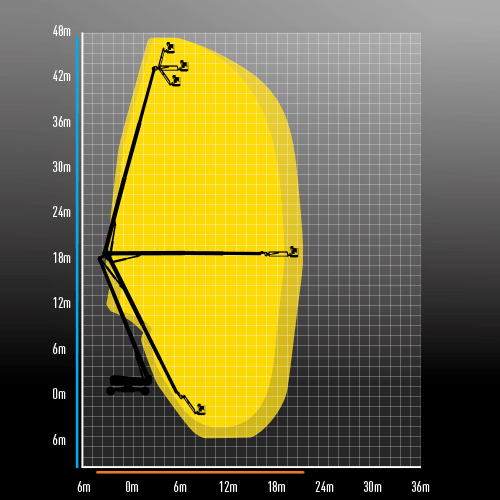

| Horizontal Outreach | 23.55m |
| Up and Over Height | 18.40m |
| Swing (Continuous) | 360° |
| Lift Capacity (Restricted) | 450kg |
| Lift Capacity (Unrestricted) | 270kg |
| Platform Rotator | 180° |
| Jib Length | 2.44m |
| Jib Range of Articulation | 130° (+75°/-55°) |
| Jib Horizontal Rotation | 125° (55° right, 70° left) |

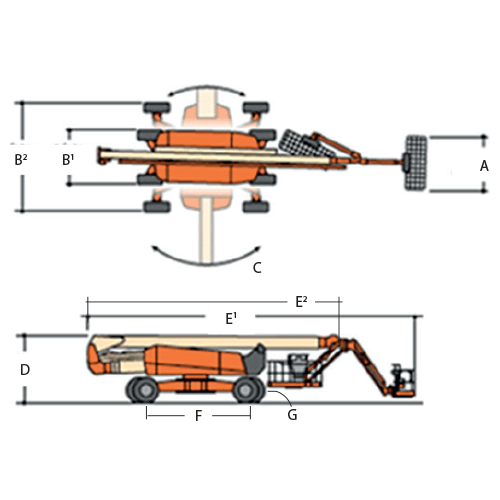

| A. Platform Size | 0.91m x 2.44m |
| B1. Overall Width (Axles Retracted) | 2.50m |
| B2. Overall Width (Axles Extended) | 5.00m |
| C. Tailswing | 0.70m |
| D. Height Stowed | 3.10m |
| E1. Length Stowed | 15.10m |
| E2. Length Stowed (Transport Position) | 12.10m |
| F. Wheelbase (Axles Extended) | 4.60m |
| G. Ground Clearance | 0.30m |
| Gradeability | 40% |
| Inside Turning Radius (Retracted) | 7.10m |
| Inside Turning Radius (Extended) | 2.30m |
| Outside Turning Radius (Retracted) | 9.50m |
| Outside Turning Radius (Extended) | 6.60m |
| Weight | 26,027kg |
World's largest working envelope with high capacity throughout
JLG QuickStickTM capability allows for full height to ground in ~2 minutes
Full height drive capability
Providing largest working outreach in the industry while class-leading capacity allows for more materials to the work area. The JLG 1500AJP Quickstik enabled boom operation means operators can spend more time working and less time positioning
The JLG 1500AJP automatic axle deployment allows for set-up within 1 minute Minimal work uninterruption due to driveability at full height
More stable operation due to wide axle foot print. LCD display in platform keeps operator fully informed on location in work envelope. The JLG 1500AJP has advanced hydraulics and cylinder dampening provides for smooth ride and deployment functions. It's also equipped with JLG SkyGuard(TM) protecting the operator control panel
