Electric Scissor Lift
| Working Height | 12.00m |
| Platform Height | 10.00m |
| Deck Extension | 0.90m |
| Length Stowed | 2.39m |
| Width Stowed | 1.15m |
| Height Stowed (Rails Folded) | 1.86m |
| Height Stowed (Rails Unfolded) | 2.48m |
| Platform Length | 2.25m |
| Platform Width | 1.15m |
| Platform Height | 1.10m |
| Lift Capacity | 320kg |
| Max No. of Persons | 2 |
| Ground Clearance | 0.1m |
| Wheelbase | 1.85m |
| Turning Radius (Inside) | 0m |
| Turning Radius (Outside) | 2.35m |
| Gradeability | 25% |
| Weight | 2,646kg |

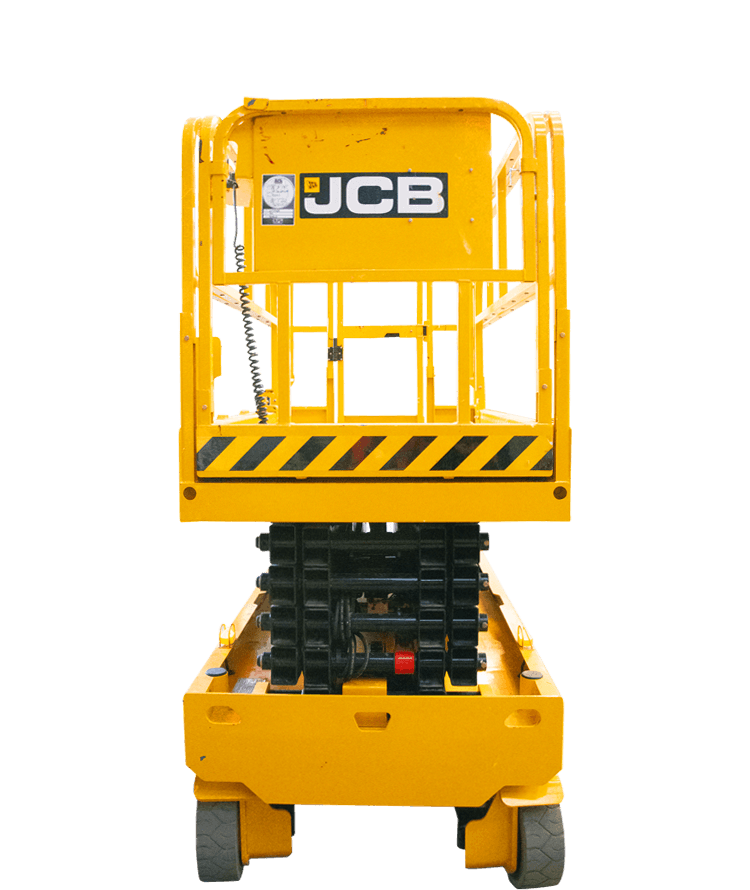

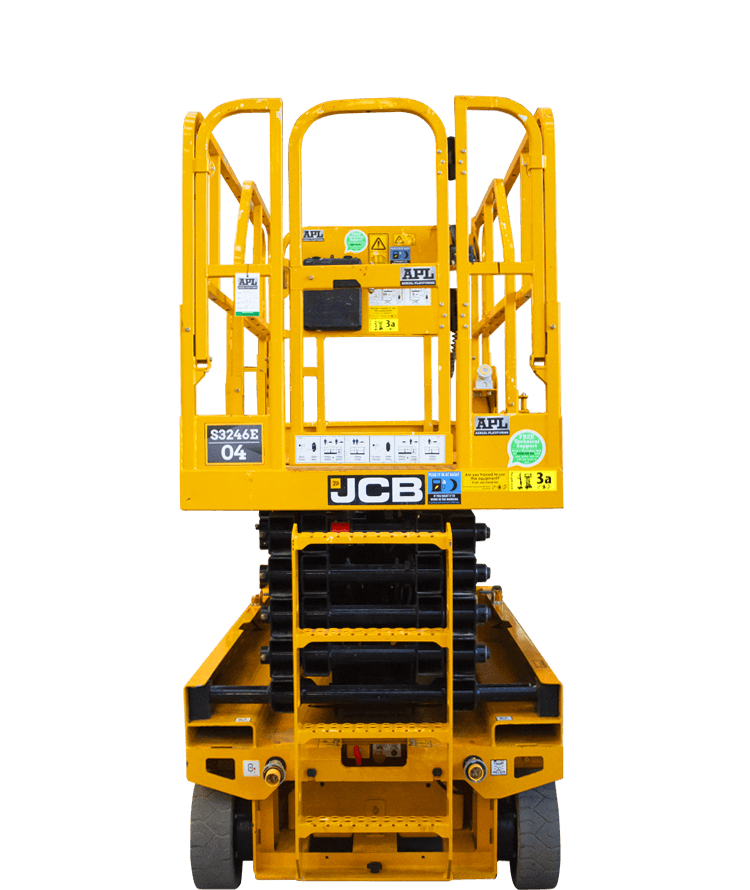

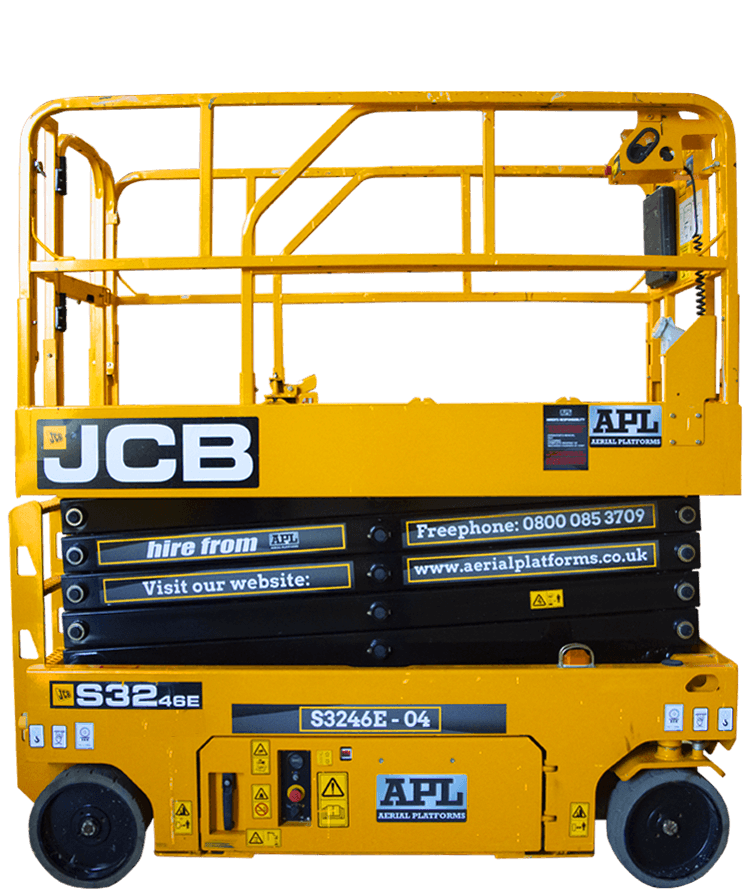

The JCB S3246E is an electric scissor lift designed to elevate two operators and their equipment to a maximum working height of 12.00 meters, with a platform capacity of 320 kilograms. The platform measures 2.25 meters in length and 1.15 meters in width, featuring a 0.90-meter roller-supported deck extension for enhanced reach. Its compact dimensions—2.39 meters in length, 1.15 meters in width, and a stowed height of 2.48 meters (reducible to 1.86 meters with rails folded)—facilitate maneuverability in confined spaces. The S3246E boasts a zero inside turning radius and an outside turning radius of 2.35 meters, with a gradeability of 25%. Weighing 2,646 kilograms, it is equipped with non-marking tires and offers power-to-platform functionality. Additional features include a unique gate handle for safe access and egress, as well as easily collapsible guardrails for increased versatility.
320kg platform capacity allows two people and their tools to work safely
0.90m roller supported deck extension can be operated with ease
Unique gate handle for easy and safe access and egress
Working height of 12.00m
Large lift capacity of 320kg
Machine weight of just 2,646kg
