Electric Mast Lift

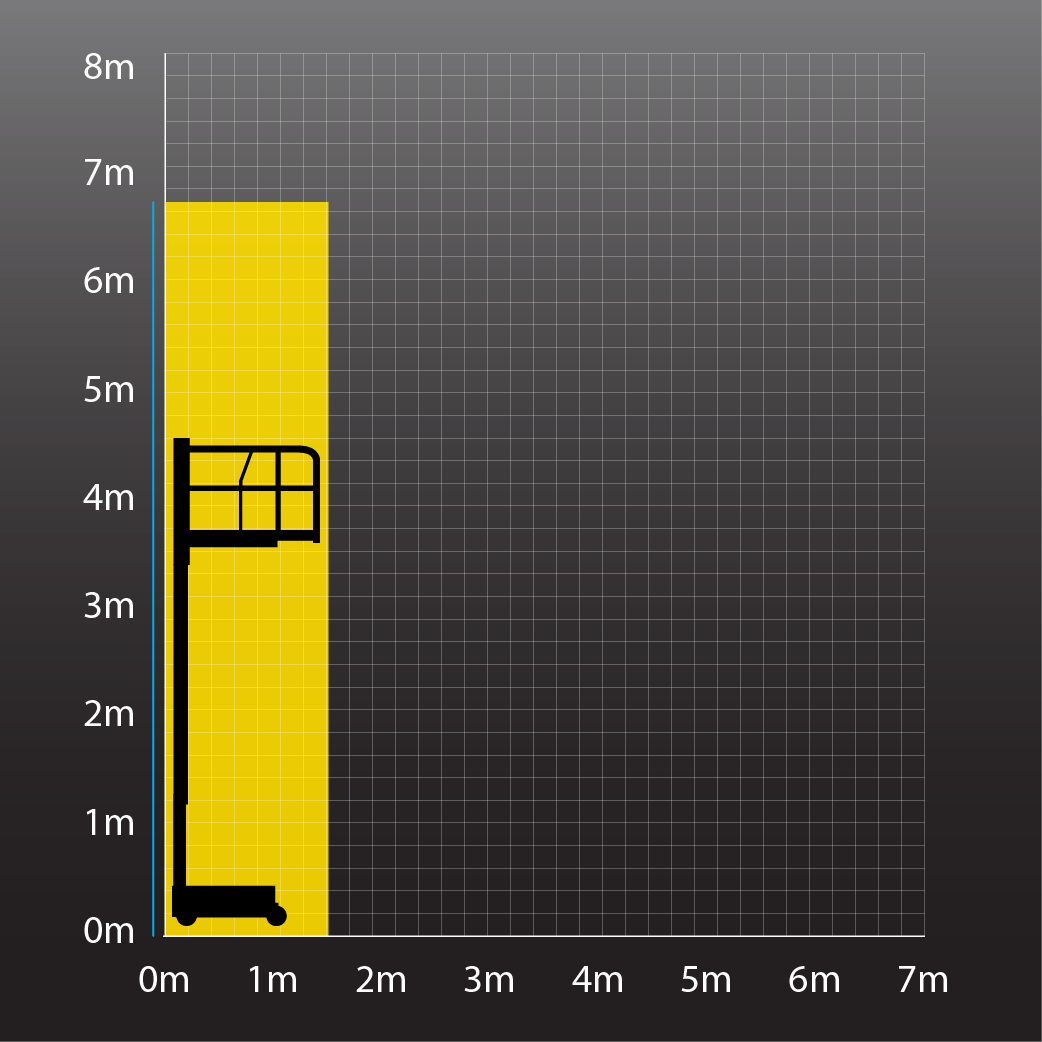

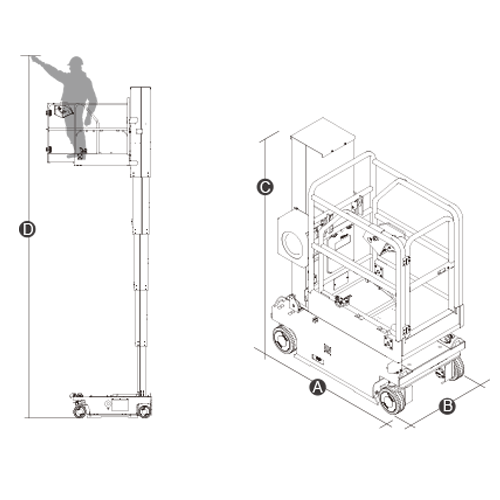

| Max. Working Height (D) | 6.70m |
| Max. Platform Height | 4.70m |
| Overall Length (A) | 1.45m |
| Overall Width (B) | 0.76m |
| Overall Height (C) | 1.99m |
| Platform Size (Length x Width) | 1.00m x 0.76m |
| Platform Extension Size | 0.50m |
| Turning Radius (Inside/Outside) | 0.60m / 1.80m |
| Safe Working Load (S.W.L) | 200kg |
| S.W.L on Extension | 113kg |
| Wheelbase | 1.21m |
| Travel Speed (Stowed) | 3.6km/h |
| Gradeability | 25% |
| Up/Down Speed | 28/28 secs |
| Maximum Working Slope | x-1.5° Y-3° |
| Battery | 2x12V 115Ah |
| Ground Clearance (Stowed/Raised) | 0.06m/0.014m |
| Weight | 990kg |

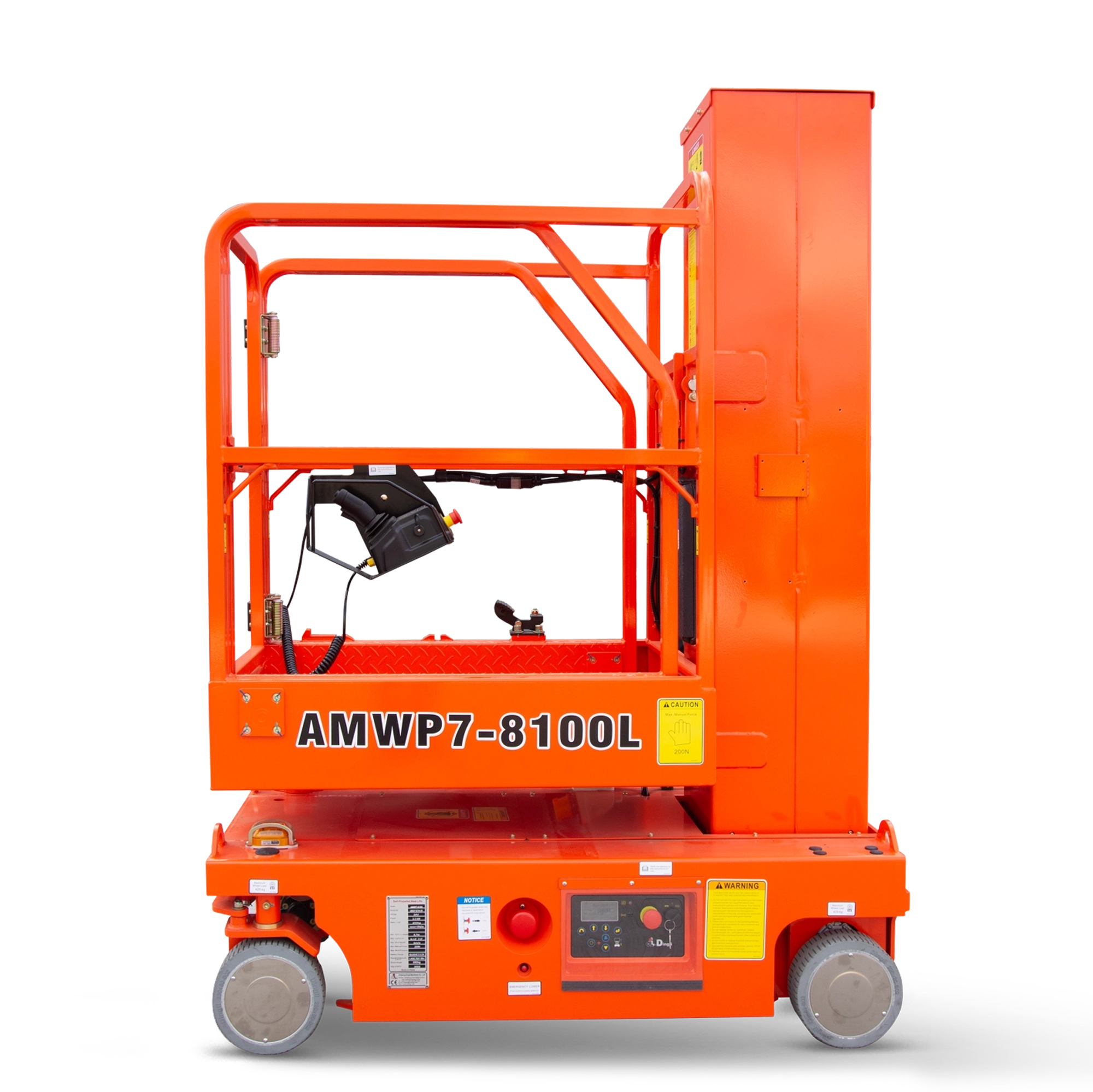

The Dingli AMWP7-8100L is a low level electric mast lift that offers a max. working height of 6.70m and a safe working load of 200kg. The machine boasts a brushless DC motor and is completely oil-free making it more energy-efficient, more environmentally friendly and entirely maintenance-free. The Dingli AMWP7-8100L's compact dimensions of just 1.45m x 0.76m, and its 0m inside turning radius make it a fantastic choice when working in confined spaces. It is also capable of driving at its full height of 4.70m, increasing worksite efficiency by allowing for precise maneuverability whilst at height.
The Dingli AMWP7-8100L has a Self-lock Gate On the Platform for increased operator safety.
Non Marking Tyres and a low overall weight of 990kg meaning it can be operated on sensitive flooring.
The Dingli AMWP7-8100L is drivable at its full height of 4.70m.
Powered by two super-efficient 12V 115Ah batteries, the machine benefits from extended duty cycles.
Compact machine dimensions of 1.45m (L) x 0.76m (W) x 1.99m (C) and a Inside/Outside turning radius of 0.60m/1.80m make it fantastic at maneuvering through narrow and confined spaces.
Driven by a powerful brushless DC motor, the machine is completely oil-free making it more energy-efficient, environmentally friendly and has the added benefit of being entirely maintenance-free.
