Hybrid Boom Lift
| Working Height | 17.00m |
| Platform Height | 15.00m |

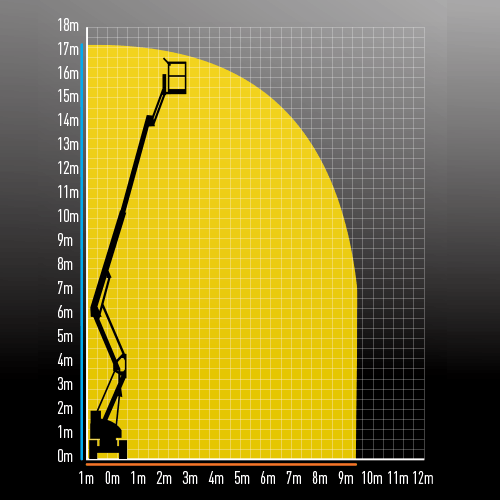

| Horizontal Outreach | 9.70m |
| Lift Capacity | 225kg |
| Platform Size | 1.50m x 0.80m |
| Jib Articulation | 150° |
| Platform Rotation | 180° |

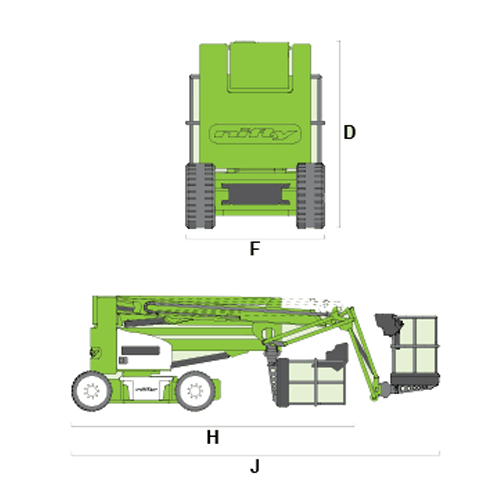

| Height Stowed | 1.99m |
| Width | 1.50m |
| Length Stowed | 6.40m |
| Length Stowed (Transport Position) | 4.93m |
| Turning Radius | 3.50m |
| Gradeability | 25% |
| Weight | 7,650kg |

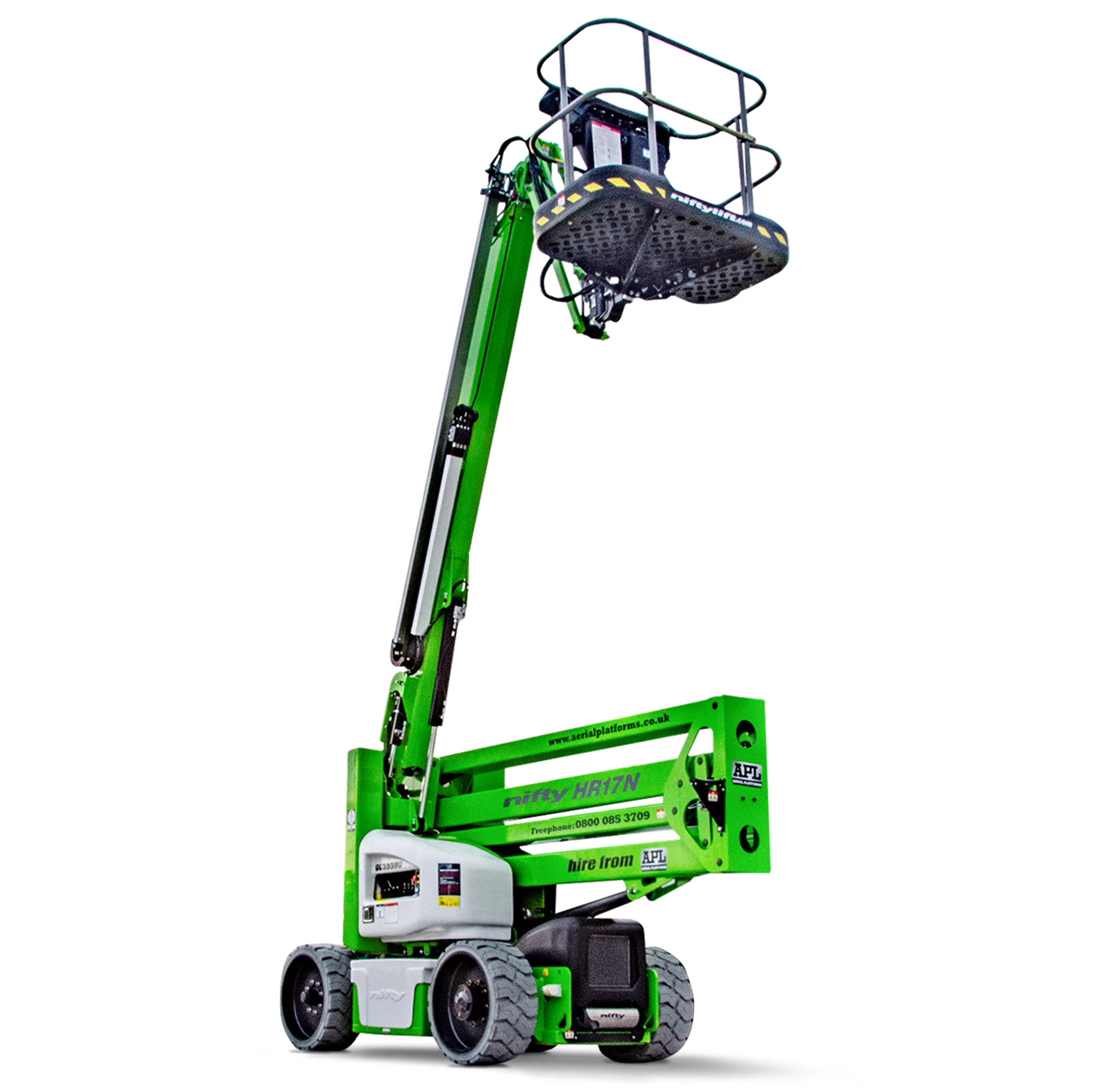

The HeightRider 17 Narrow (HR17N) will lift 2 men and their tools to a working height of 17m or a working outreach of 9.7m.
A 180° rotating cage and fly-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks easier and quicker to complete.
The HR17N's compact dimensions and zero-tail-swing enable it to travel through and work in restricted spaces, while its non-marking tyres mean it can work both inside and out, making it ideal for maintenance or industrial work.
Allowing operation in confined areas
Multi-award winning operator protection
Fast & precise operation
