Hybrid Bi-Energy Boom Lift
| Working Height | 15.50m |
| Platform Height | 13.50m |

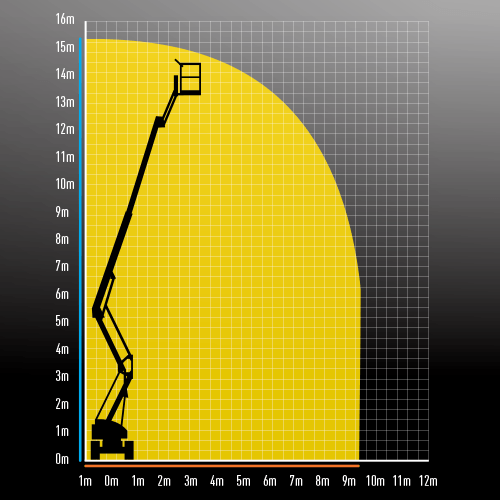

| Horizontal Outreach | 9.70m |
| Lift Capacity | 225kg |
| Platform Size | 0.80m x 1.50m |
| Jib Articulation | 150° |
| Basket Rotation | 180° |

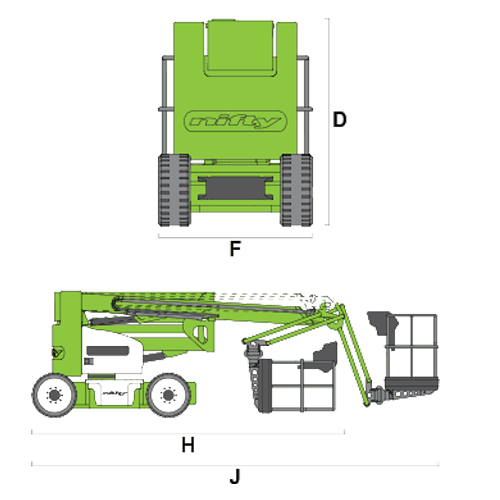

| Height Stowed | 1.99m |
| Width | 1.50m |
| Length Stowed | 6.40m |
| Length Stowed (Transport Position) | 4.93m |
| Turning Radius | 3.50m |
| Gradeability | 25% |
| Weight | 7,250kg |

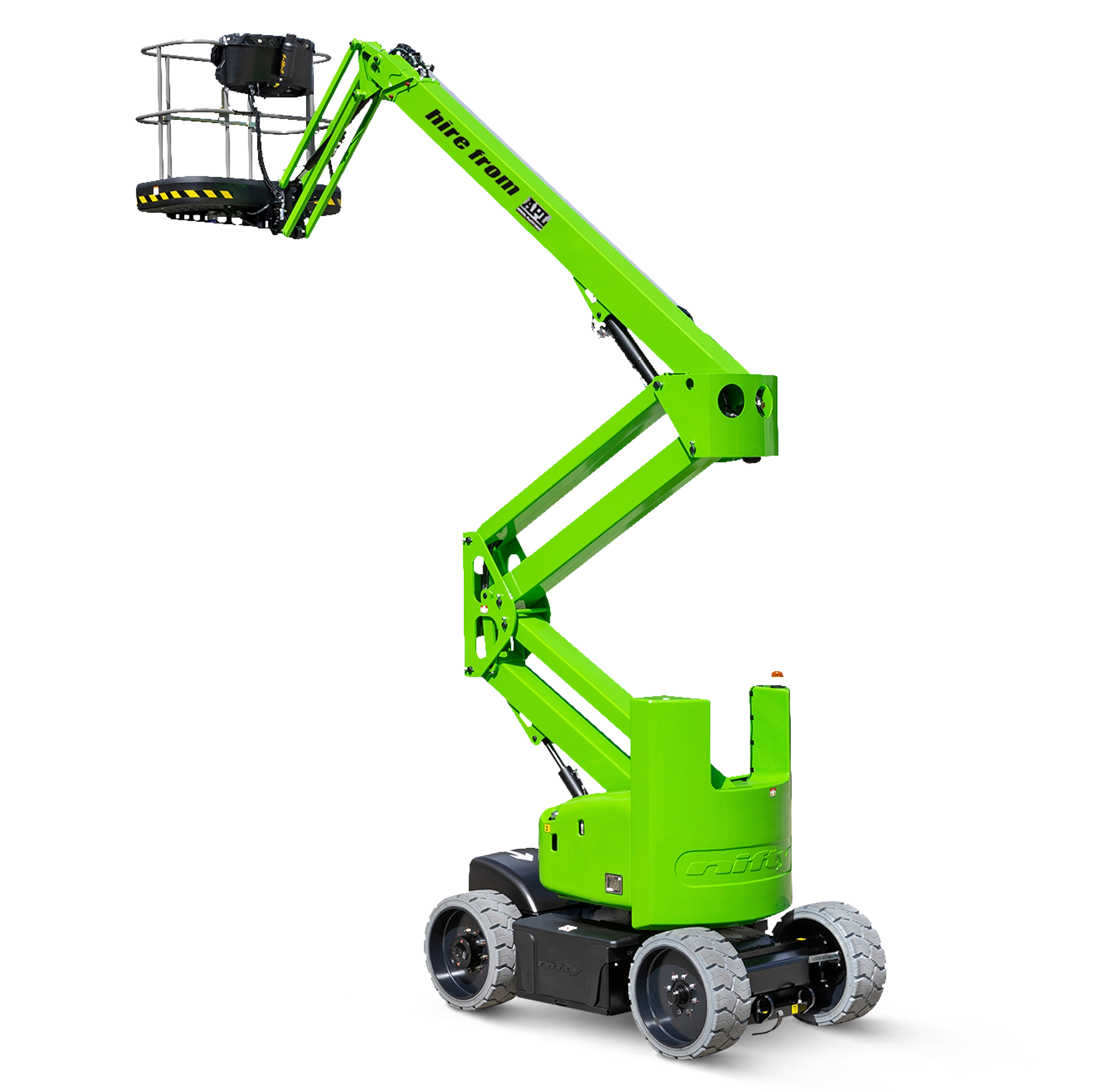

The new Height Rider 15N (HR15N) will lift 2 men and their tools to a working height of 15.5m or a working outreach of 9.7m.
A 180° rotating cage and fly-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks easier and quicker to complete.
The HR15N's compact dimensions and zero-tail-swing enable it to travel through and work in restricted spaces, while its non-marking tyres mean it can work both inside and out, making it ideal for maintenance or industrial work.
Allowing operation in confined areas
Improving operator access
Multi-award winning operator protection
