Electric Boom Lift
| Working Height | 11.00m |
| Platform Height | 9.00m |
| Platform Height | 6.26m |
| Up and Over Height | 3.99m |
| Horizontal Outreach | 6.26m |

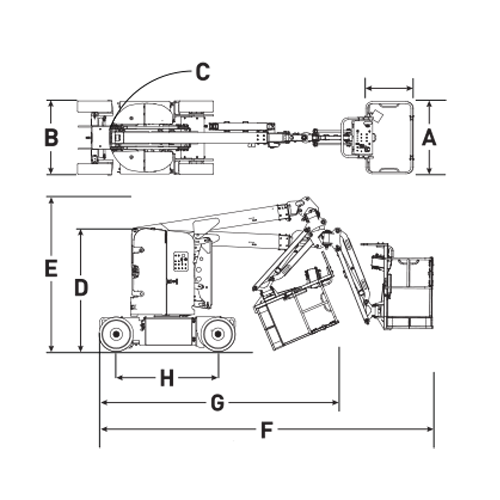

| A. Platform Size | 0.76m x 1.17m |
| B. Stowed Width | 1.19m |
| C. Tailswing | 0m |
| D. Stowed Height | 1.98m |
| E. Transport Height | 2.50m |
| F. Stowed Length | 5.51m |
| G. Transport Length | 3.78m |
| H. Wheelbase | 1.65m |
| Ground Clearance | 10.16cm |
| Turret Rotation | 355° Non-Continuous |
| Platform Rotation | 180° |
| Jib Length | 1.25m |
| Jib Range of Motion (Vertical) | 142° (+77°/-65°) |
| Jib Range of Motion (Horizontal) | 180° |
| Gradeability (Counterweight Facing Up) | 35% |
| Gradeability Counterweight Facing Down) | 25% |
| Gradeability Counterweight Facing Down) | 1.52m |
| Turning Radius (Outside) | 3.23m |
| Lift Capacity | 227kg |
| Max No. of Persons (Indoors/Outdoors) | 2/1 |
| Wind Rating | 12.5m/s |
| Weight | 5,588kg* |

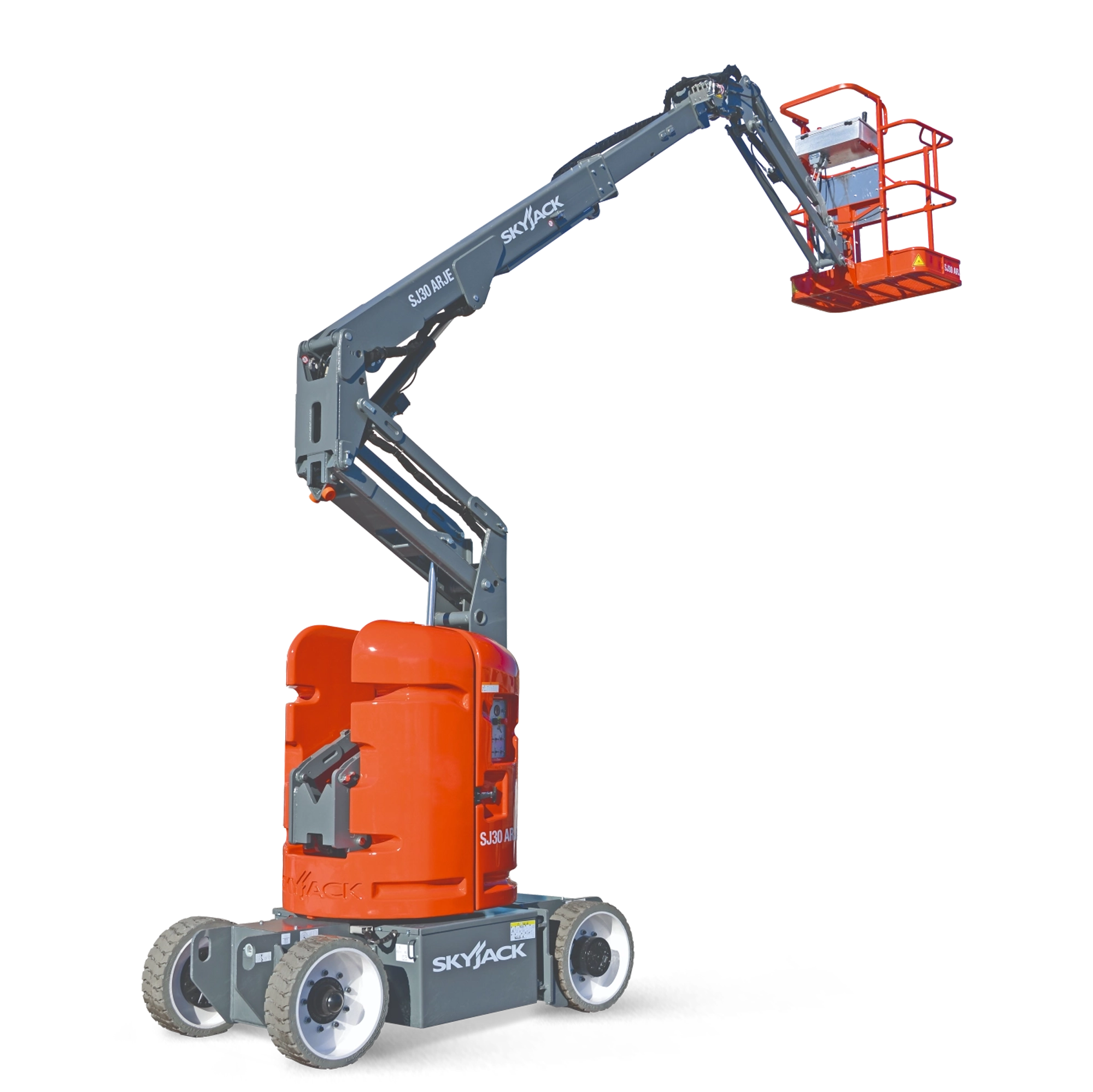

Skyjack articulating booms offer precise positioning capabilities packaged in a high capacity boom with industry-leading up-and-over reach. The tight turning radius on these machines and minimal tailswing make them ideal for maneuvering in confined areas.
Featuring 180° Horizontal Jib articulation and 142° vertical articulation

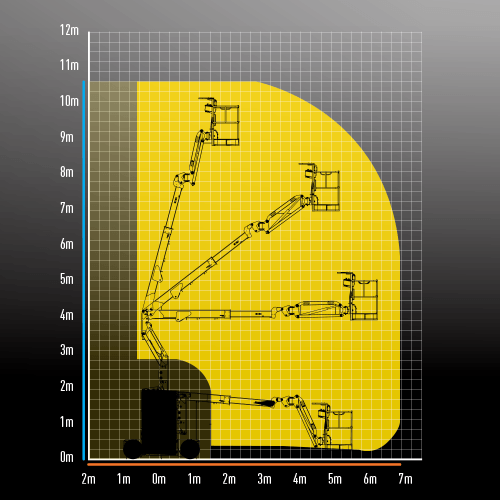

The SJ30ARJE offers 11.00m working height along with 6.26m horizontal reach and 3.99m of Up and Over height
Ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
This means the boom lift controls are always in the orientation of the operator regardless of position of turret over chassis. This reduces operator confusion by eliminating the need for colour coded arrows to determine drive versus joystick direction.
Skyjack offers a full line of ACCESSORYZERS™ to improve your machine’s versatility. These manufacturer-approved accessories are designed to add functionality to your machine and convenience for the operator. Whether it’s helping you get materials to the work site, protecting equipment from the weather, or enhancing productivity, Skyjack has the right accessory for the job.
