Electric Boom Lift

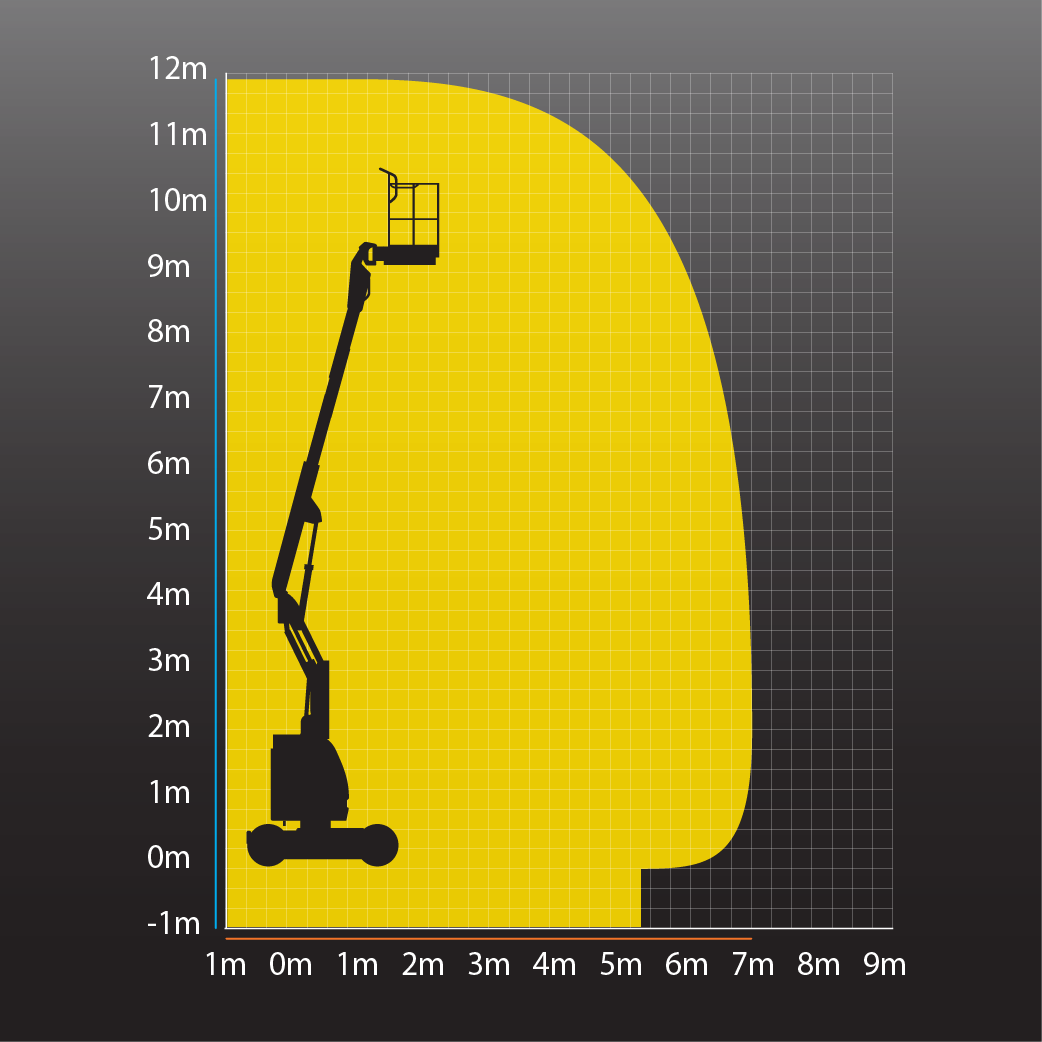

| Working Height | 11.95m |
| Platform Height | 9.95m |
| Articulation Height | 4.77m |
| Outreach | 7.00m |
| Jib Tilting | +70°/-70° |
| Jib Movement | +70°/-70° |
| Basket Rotation | 140° |
| Turret Rotation | 355° |
| Lift Capacity | 200kg |
| Max No. of Persons (Indoor/Outdoor) | 2/2 |

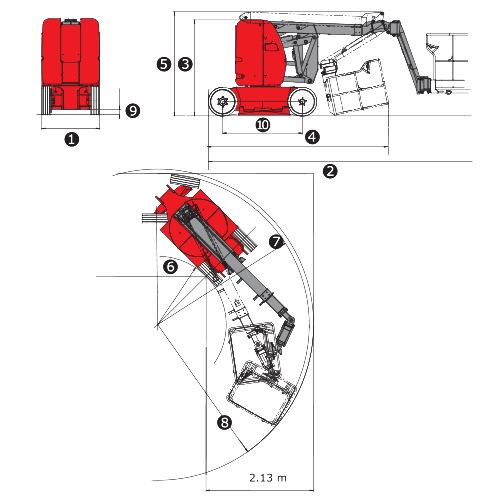

| 1. Overall Width | 1.20m |
| 2. Overall Length | 5.48m |
| 3. Overall Height | 1.99m |
| 4. Overall Length When Folded | 3.74m |
| 5. Overall Height When Folded | 2.16m |
| 6. Inside Turning Radius | 1.55m |
| 8. Outside Turning Radius | 3.44m |
| 9. Ground Clearance | 10cm |
| Wheelbase | 1.65m |
| Gradeability | 25% |
| Weight | 6,660kg |

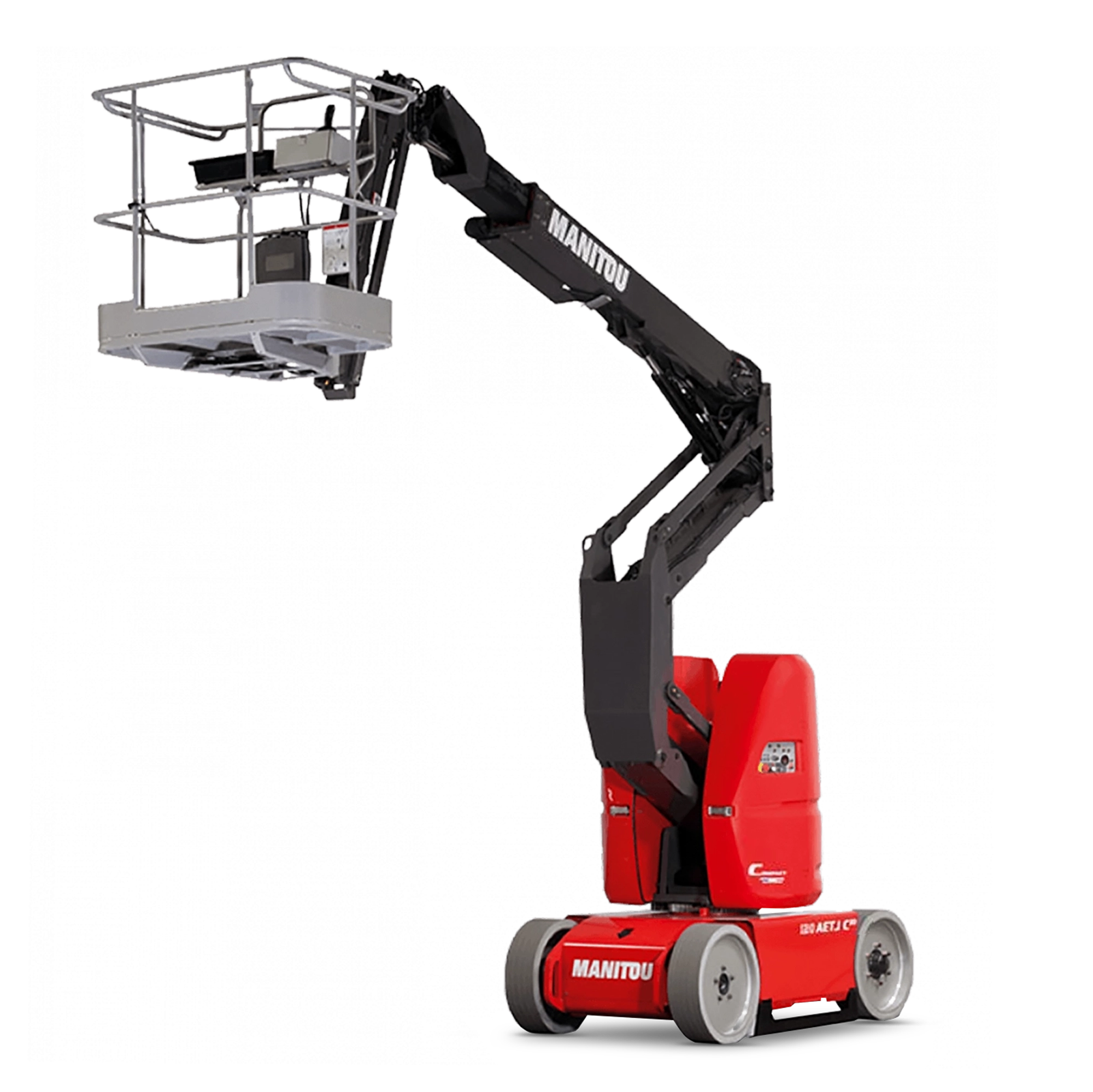

The Manitou 120AETJ-C articulated electric boom lift is an emission-free electric MEWP offering a working height of 11.95m, a max. outreach of 7.00m and a lift capacity of 200kg. It features non-marking tyres and a narrow chassis of just 1.20m making it ideal for working between racking and in other environments where space is limited such as in warehouses and logistics hubs. It also offers both basket and turret/jib rotation making it an extremely versatile machine for positioning in narrow areas.
The Manitou 120 AETJ articulated electric platform has a capacity of 200 kg with a working height of up to 11.95m

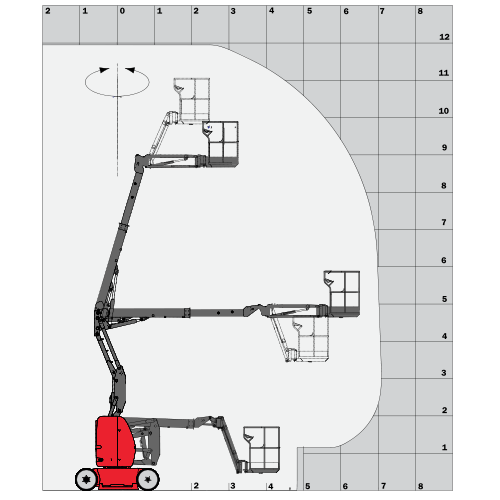

The overhang height of 4.77 m combined with the working offset of 7 m offers a range of possibilities to the operator
The Manitou 120 AETJ-C narrow design of its chassis (1.2 m) and of its elevation structure provides a high level of manoeuvrability in confined and crowded spaces
The Manitou 120 AETJ-C features an optimised turning radius which translates to increased manoeuvrability within tight spaces, for easier movement down narrow aisles and building sites to name but a few.
The Manitou 120 AETJ-C is designed bearing simplicity and particularly ease of use in mind. With this machine you'll be on board and off in no time, even if you are a novice operator.
Audible alarm and illuminated indicator lamp (leveling, overload, lowering) Pothole protection with automatic operation
