Electric Boom Lift
| Max. Working Height | 22.21m |
| Max. Platform Height | 20.21m |

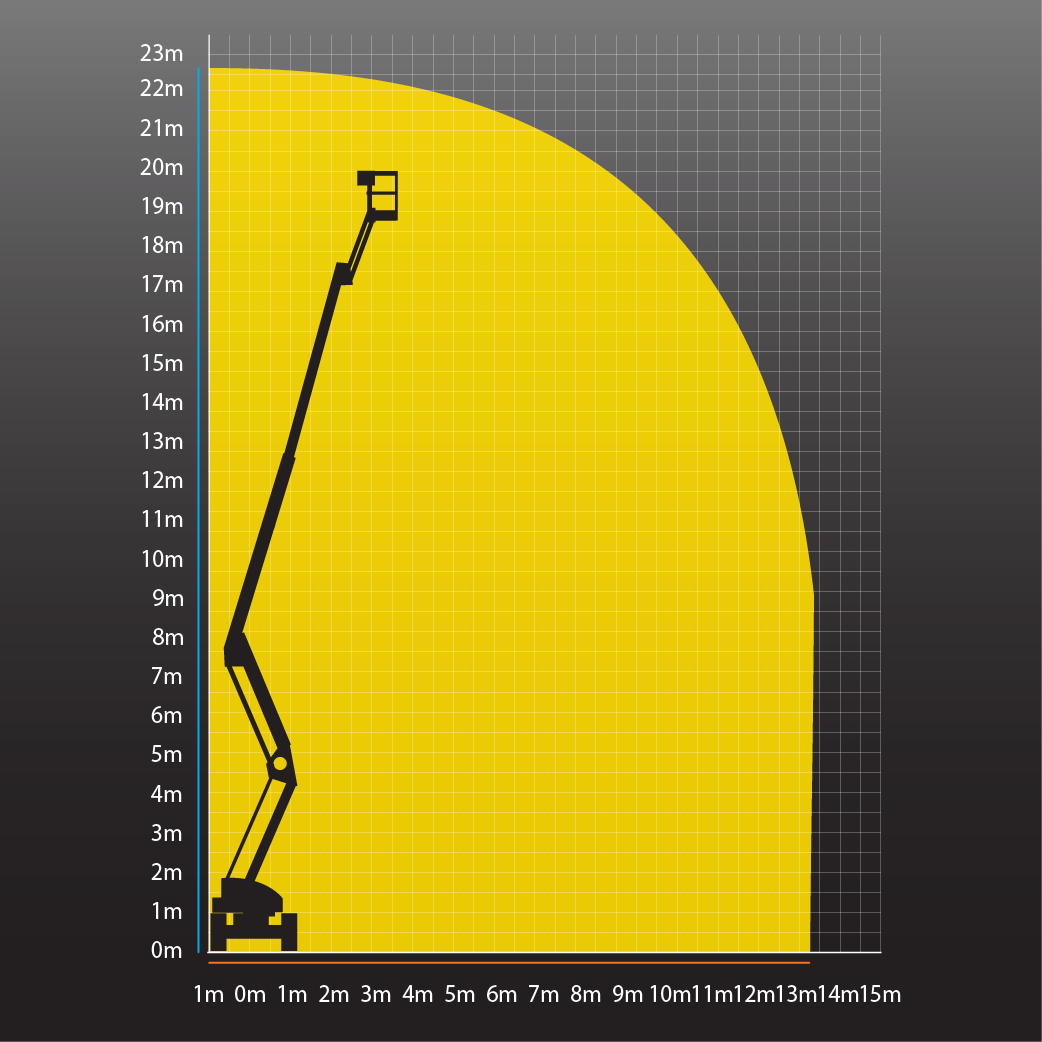

| Max. Operating Range (+0.6m) | 13.32m |
| Max. Platform Range | 12.72m |

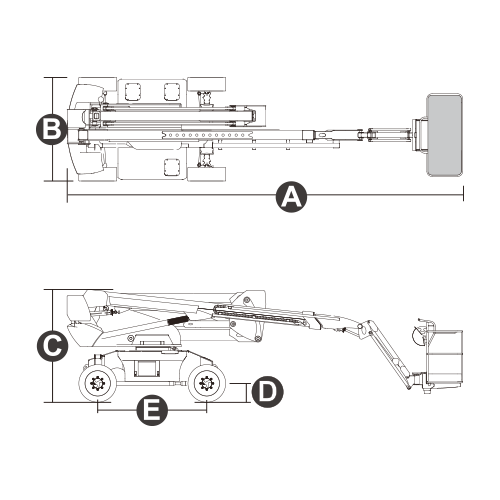

| Overall Length (Stowed) (A) | 9.55m |
| Overall Width (B) | 2.33m |
| Overall Height (C) | 2.55m |
| Platform Size (Length x Width) | 1.83m x 0.79m |
| Tailswing | 0.93m |
| Wheelbase (E) | 2.30m |
| Turning Radius (Inside/Outside) | 2.92m/4.49m |
| Max. Up And Over Clearance | 8.13m |
| Max. Down Probing Depth | 1.77m |
| Platform Capacity SWL | 250kg |
| Max. Occupants | 2 |
| Gradeability | 35% |
| Turret Rotation | 360° Continuous |
| Platform Rotation | 180° |
| Jib Movement | 132° |
| Weight | 9,500kg |

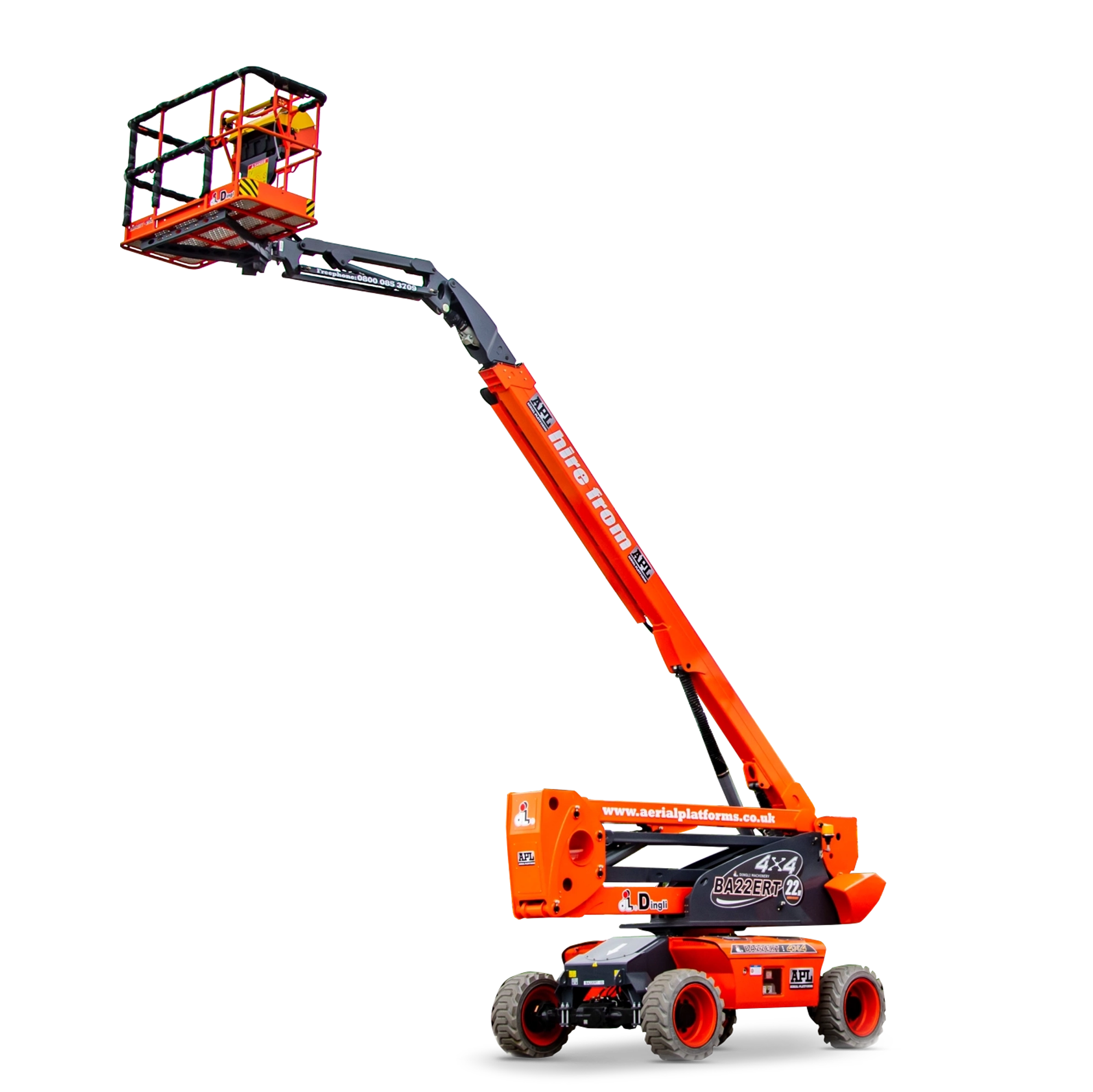

The Dingli BA22ERT is a robust and reliable electric boom lift capable of lifting a maximum of 250kg to a platform height of 20.21m. It offers an impressive range of motion thanks to its 180° platform rotation and 132° jib movement, making it ideal for positioning in tight areas such as between racking or warehouse shelving. Thanks to the Dingli BA22ERT's rough terrain non-marking tyres, it is suitable for both indoor and outdoor applications making it a very popular machine for a diverse range of our customers working in various industries.
Front Oscillating Axle with four-wheel drive
180° Left And Right Swing Platform
AC Power Cord To Platform eliminating trailing cables
Large range of articulation from both the basket and jib
Uprated platform capacity allowing 2 operatives to work safely at height
Large working height of 22m
