Diesel Boom Lift

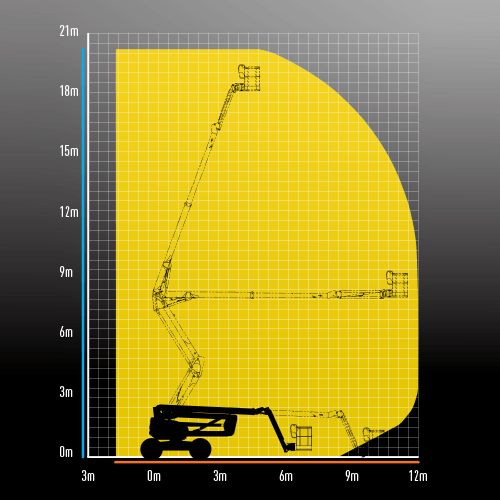

| Working Height | 20.00m |
| Platform Height | 18.00m |
| Up and Over Height | 8.00m |
| Horizontal Outreach | 12.00m |
| Jib Tilting | +70°/-70° |
| Basket Rotation | +90°/-90° |
| Turret Rotation | 355° |
| Lift Capacity | 230kg |
| Maximum No. of Persons | 2 |
| Basket Dimensions | 2.10m x 0.80m |

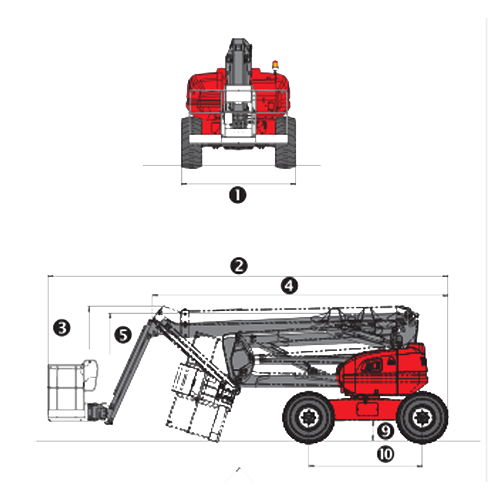

| 1. Overall Width | 2.40m |
| 2. Overall Length | 8.50m |
| 3. Overall Height | 2.70m |
| 4. Overall Length (Folded) | 6.30m |
| 5. Overall Height (Folded) | 3.15m |
| 6. Turning Radius (Inside) | 1.30m |
| 7. Turning Radius (Outside) | 3.95m |
| 8. Turning Radius (Basket) | 7.45m |
| 9. Ground Clearance | 43cm |
| 10. Wheelbase | 2.40m |
| Gradeability | 40% |
| Weight | 10,000kg |

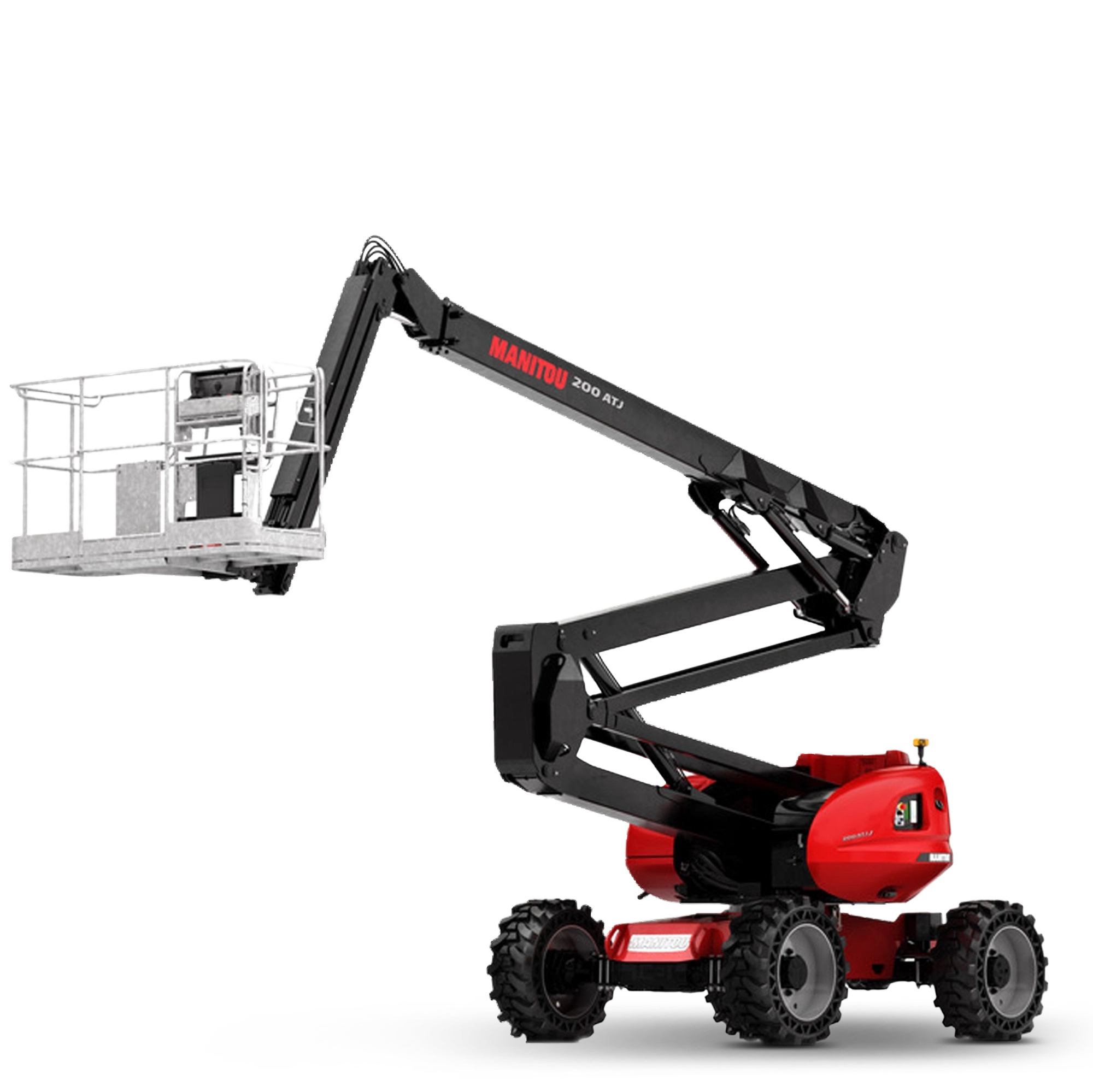

The 200 ATJ articulated platform allows you to carry out your tasks at a working height of 20m with an up and over clearance of 8m.
Up to 230kg can be loaded and its platfrom of 2.1m x 0.8m provides the operator with a large working area.
The Manitou 200 ATJ platform's ground clearance of 0.43 m combined with its all-terrain capabilities guarantee a high clearance capacity. An incremental hydraulic management system for engine speed was developed so as to reduce the noise level and fuel consumption.
Whether in lifting capacity or height, engine power, longer battery autonomy or drawbar full, the Manitou 200 ATJ handling equipment shows it is the fruit of the labours of our various development departments.
All Manitou machines that come equipped with 4-wheel drive are true all-terrain vehicles. Combined with a generous ground clearance, they allow you to get out of all manner of sticky manoeuvring situations and keep performance levels high.
The Manitou 200 ATJ all-terrain machines have extra ground clearance to overcome any obstacles in their path (such as potholes or uneven pavement) Additionally the 4-wheel drive and large tyres provide all the traction you need to move loads over soft or difficult terrain (such as mud, sand, grass, gravel, etc.)
