Telescopic Diesel Boom Lift
| Max. Working Height | 27.90m |
| Max. Platform Height | 25.90m |
| Horizontal Outreach | 23.32m |
| Below Ground Reach | 2.89m |
| Platform Length | 2.44m |
| Platform Width | 0.91m |
| Platform Capacity | 250/340kg |

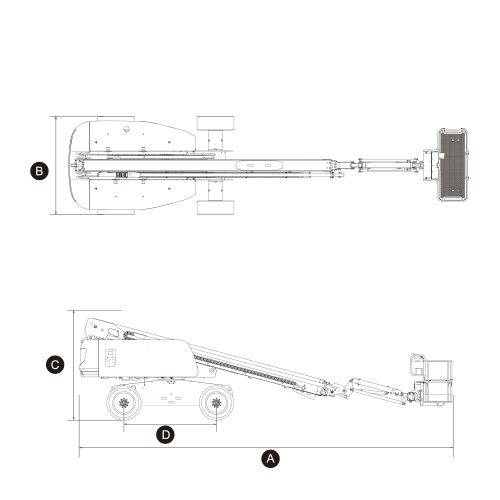

| Stowed Length (A) | 12.60m |
| Overall Width (B) | 2.50m |
| Stowed Height (C) | 2.86m |
| Wheelbase (D) | 2.85m |
| Max. Platform Occupants (Unrestricted/Restricted) | 2/2 |
| Turntable Rotation | 360° |
| Turntable Tailswing | 1.42m |
| Gradeability | 45% |
| Max. Wind Speed | 12.5m/s |
| Inside Turning Radius | 3.66m |
| Outside Turning Radius | 6.55m |
| Max Slope | 2.5/4.5° |
| Weight | 18,000kg |

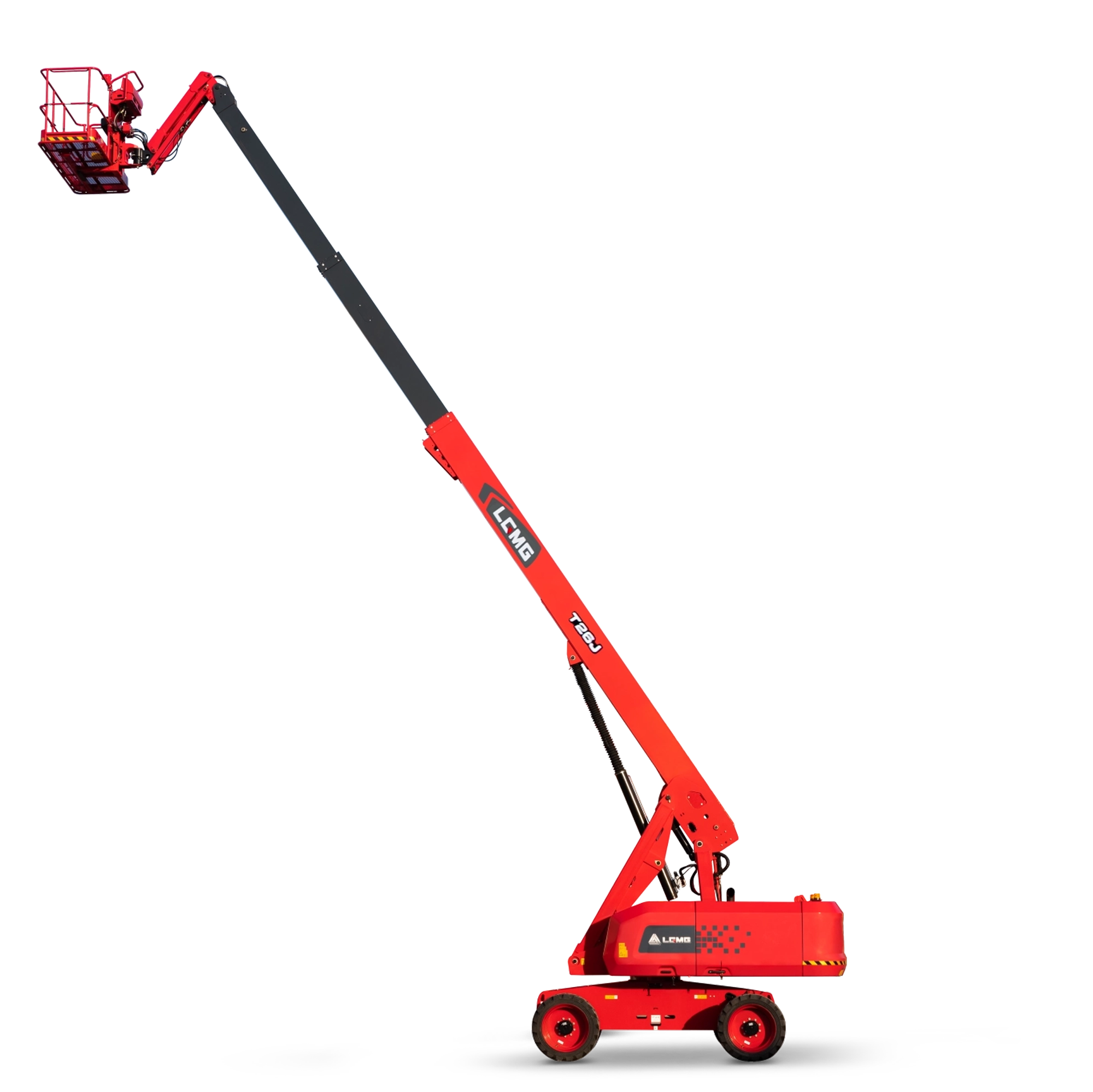

The LGMG T26J is a rough terrain semi-articulated telescopic boom lift suitable for a range of different applications. Thanks to its straight-stick telescopic design, it offers a fantastic horizontal outreach of 23.32m with an equally as impressive working height of 27.90m. The rough-terrain tyres and oscillating axles that come standard on the LGMG T26J deliver fantastic gradeability and performance on the most challenging terrains. Its large platform dimensions of 2.44m x 0.91m not only allows 2 occupants and their tools to work together comfortably at height, but also reduces the number of times the platform has to be repositioned. This, paired with the machine's 360° continuous turntable rotation make it a very versatile machine for construction projects of all shapes and sizes.
Oscillating axels and four-wheel drive delivers better gradeability on rough terrain.
Proportional control ensures smooth driving, precise positioning and comfortable operation.
Continuous 360° turntable rotation expands the operational area and makes operations more convenient.

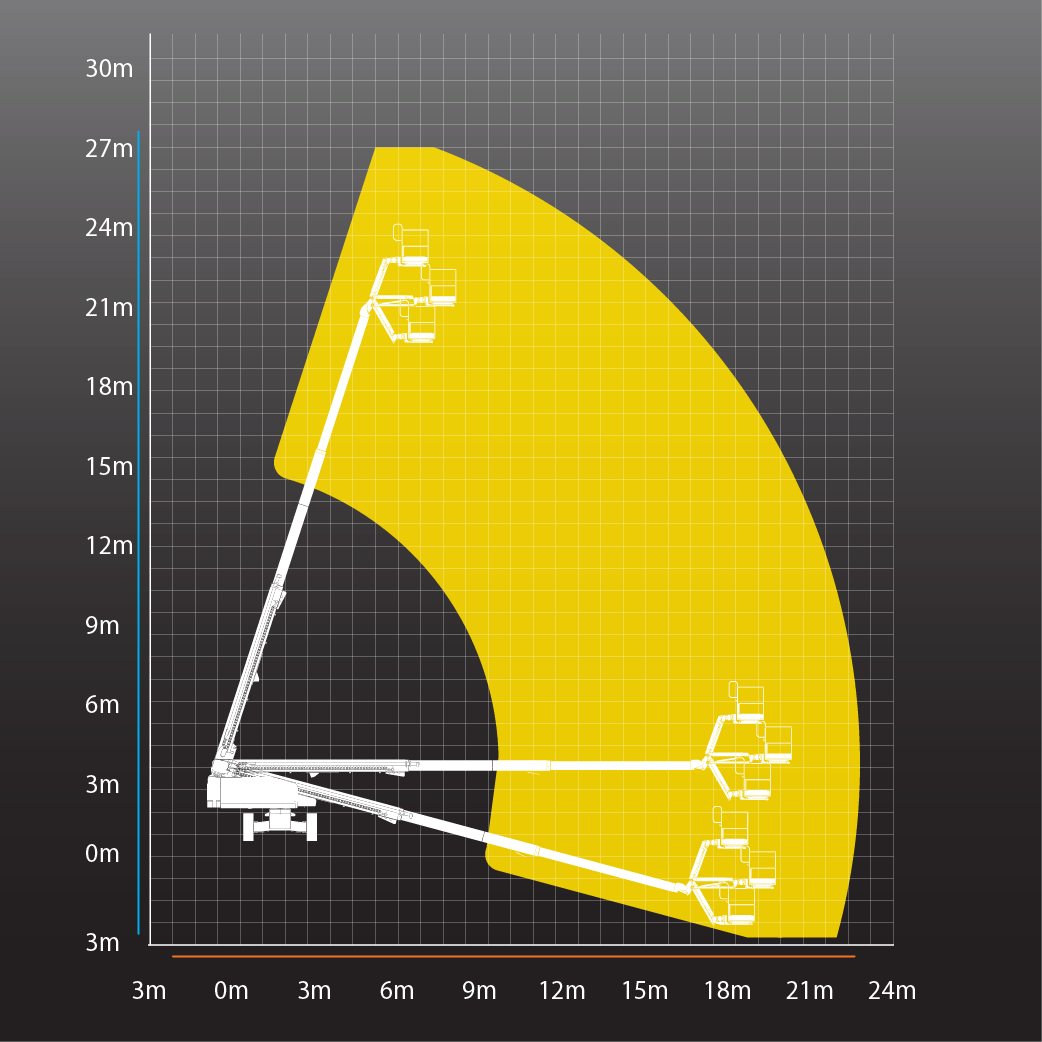

The LGMG T26J is capable of reaching a max. working height of 27.90m, max. horizontal outreach of 23.32m and a below ground reach of 2.89m
Max. SWL of 250kg (unrestricted) and 340kg (restricted)
45% gradeability and oscillating axles mean this machine is capable of driving on extremely rough terrain
