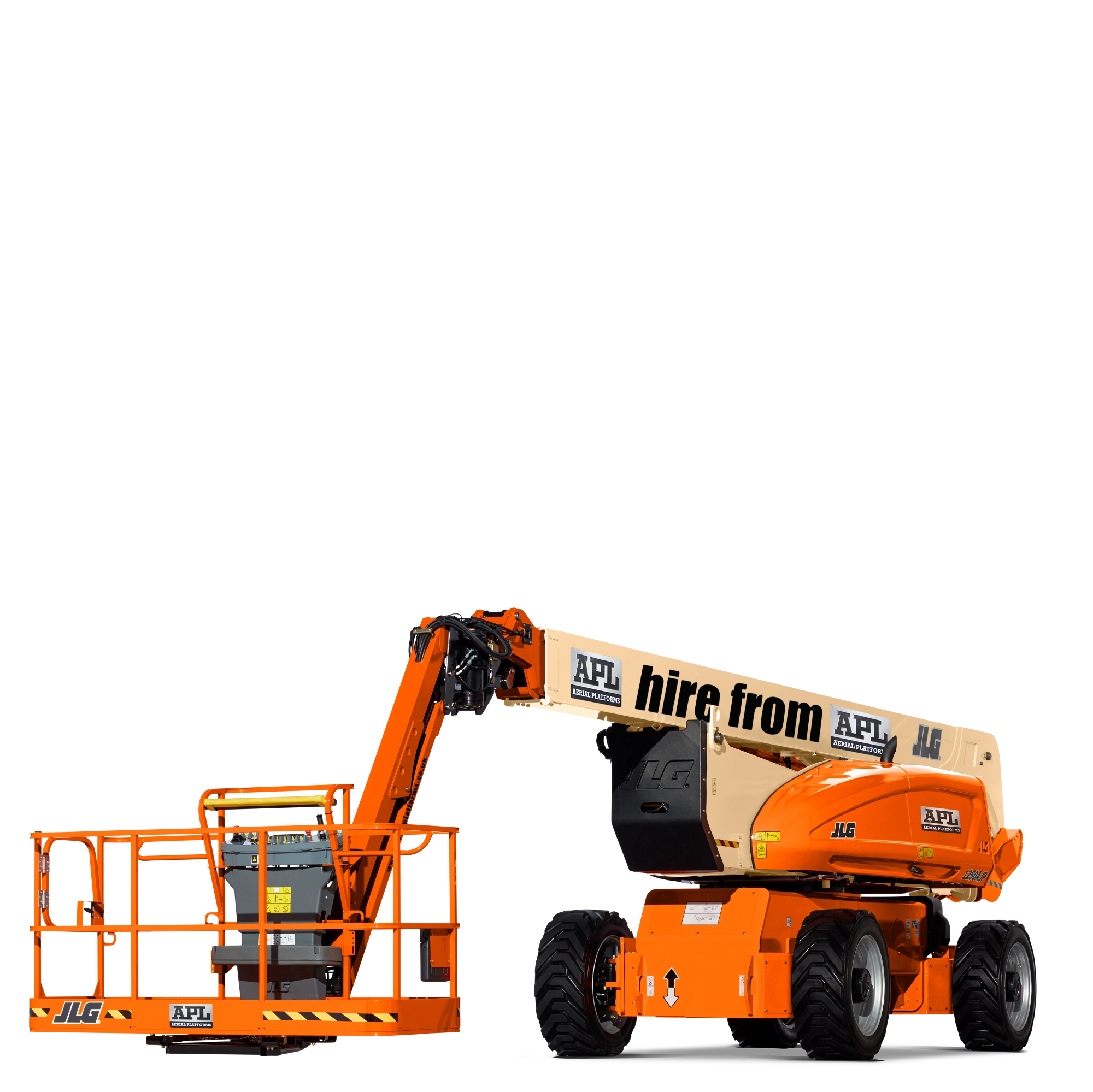

Diesel Boom Lift

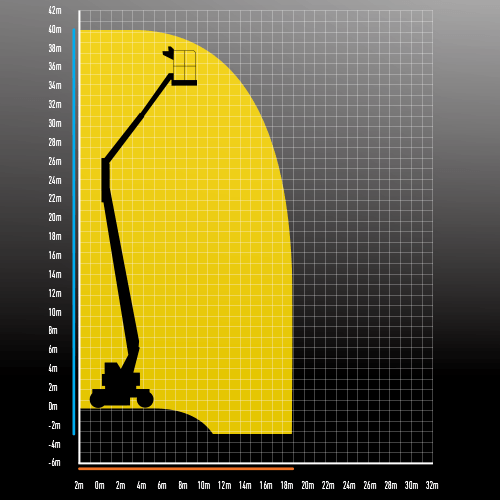

| Working Height | 40.30m |
| Platform Height | 38.30m |
| Horizontal Outreach | 19.25m |
| Up and Over Height | 18.44m |
| Swing (Continuous) | 360° |
| Lift Capacity (Restricted) | 450kg |
| Lift Capacity (Unrestricted) | 230kg |
| Platform Rotator | 180° |
| Jib Overall Length | 2.44m |
| Jib Range of Articulation | 130° Vertical (+75°/-55°) |
| JibPLUS Range of Articulation | 125° Horizontal |

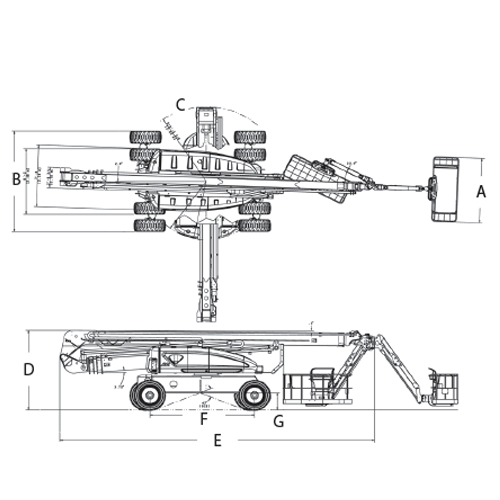

| A. Platform Size | 0.91m x 2.44m |
| B. Overall Width (Axles Retracted) | 2.49m |
| Overall Width (Axles Extended) | 3.81m |
| C. Tailswing | 0.91m |
| D. Height Stowed | 3.05m |
| E. Length Stowed (Transport Position) | 11.46m |
| F. Wheelbase | 3.81m |
| G. Ground Clearance | 0.30m |
| Gradeability | 45% |
| Weight | 21,000kg |
JLG’s patented QuikStick® boom design significantly reduces lift/lower cycle times
Four wheel drive and four wheel steer plus oscillating axle for superb jobsite mobility
Dual platform capacity with up to 450 kg available provides increased versatility and productivity
Equipped with hydrostatic drive for easy, precise and infinitely-variable-speed manoeuvrability. Go from ground to over 40m in under 115 seconds and enjoy industry best reach envelope with exclusive QuickStik boom
Conquer rough terrain with standard oscillating axle and four-wheel drive, delivering optimised grip and stability.
Lower hydrocarbon, carbon monoxide, particulate and NOx emissions with Stage IIIB-compliant engine.
