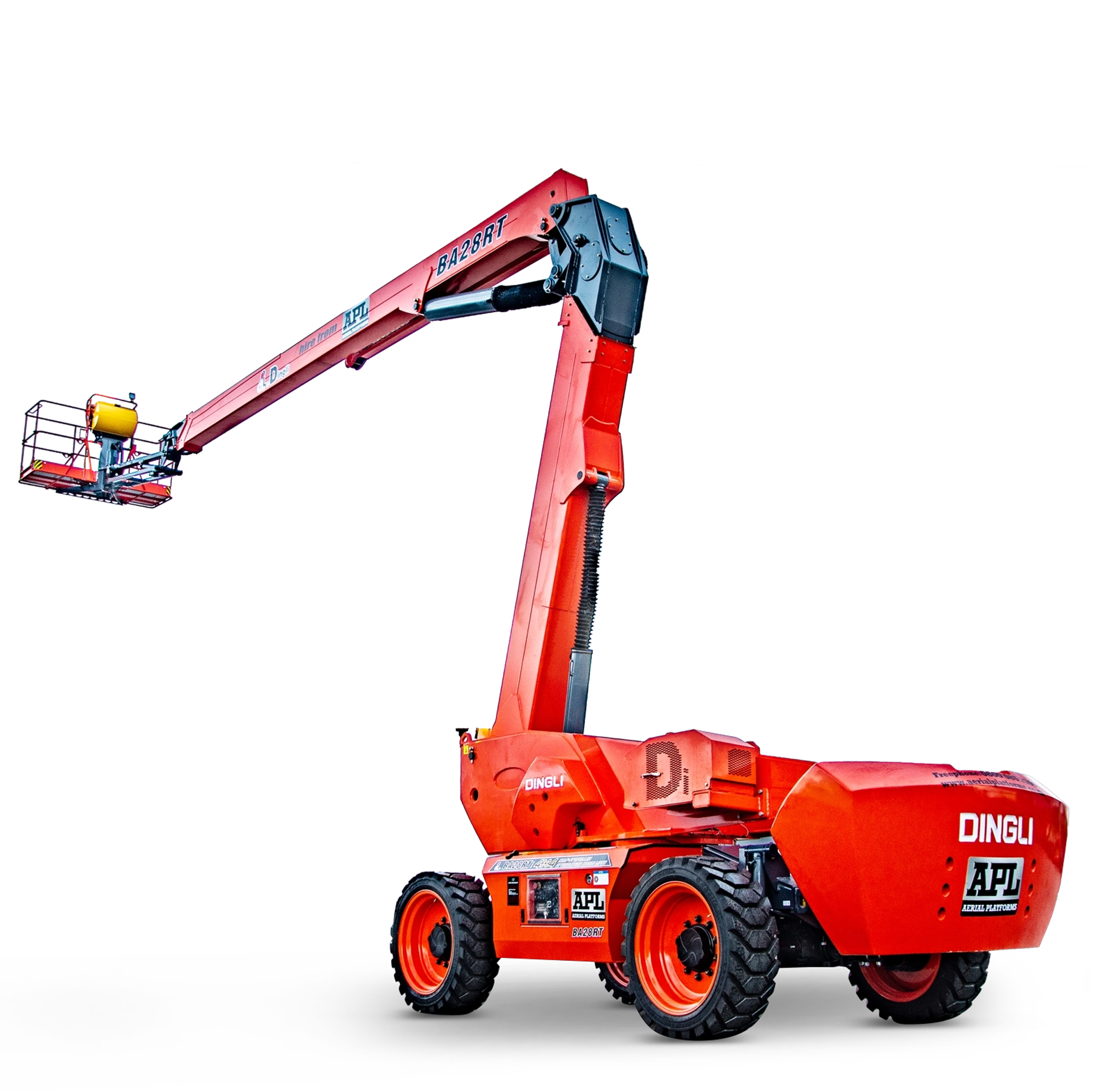

Diesel Boom Lift
| Max. Working Height | 28.10m |
| Max.Platform Height | 26.10m |
| Max.Horizontal Reach | 18.80m |
| Up And Over Clearance | 9.14m |

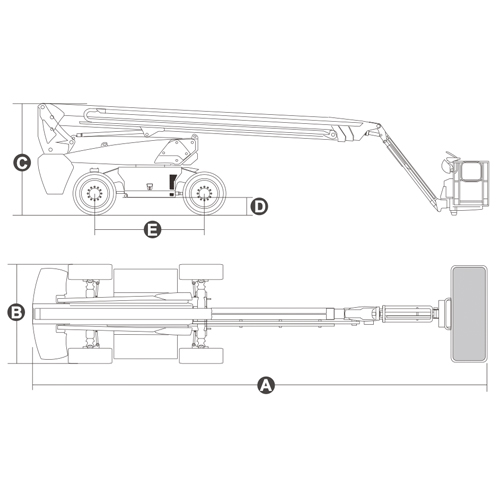

| A. Overall Length(Stowed) | 11.83m |
| Overall Length(Transport) | 12.03m |
| B. Overall Width(Stowed) | 2.50m |
| Overall Width(Transport) | 2.28m |
| C. Overall Height(Stowed) | 2.89m |
| Overall Height (Transport) | 2.57m |
| Platform Size(Length×Width) | 2.44m × 0.90m |
| D. Ground Clearance | 0.41m |
| E. Wheelbase | 2.80m |
| Max. Down Probing Depth | 6.61m |
| Lift Capacity | 250kg |
| Max Occupants | 2 |
| Tailswing Turntable | 1.61m |
| Turning Radius (Inside/Outside) | 1.87m/3.22m |
| Turret Rotation (Continuous) | 360° |
| Platform Rotation | 180° |
| Jib Movement | 135° |
| Gradeability | 45% |
| Max Working Slope | X-5°/Y-5° |
| Weight | 18,300kg |
Better off-road performance using the axle integrated 4WD system
Equipped with platform anti-extrusion device, start stop protection when extrusion occurs
Maximum weight of 18,300kg

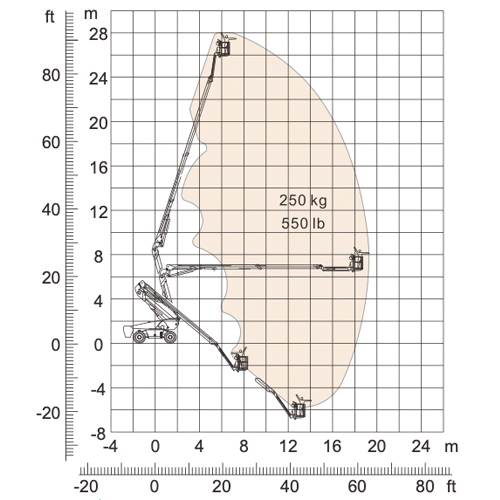

Max Working Height of 28.10m with a Max Platform Height of 26.10m
Max Horizontal Outreach of 18.80m
Benefit from a 250kg platform capacity suited for 2 occupants and tools
